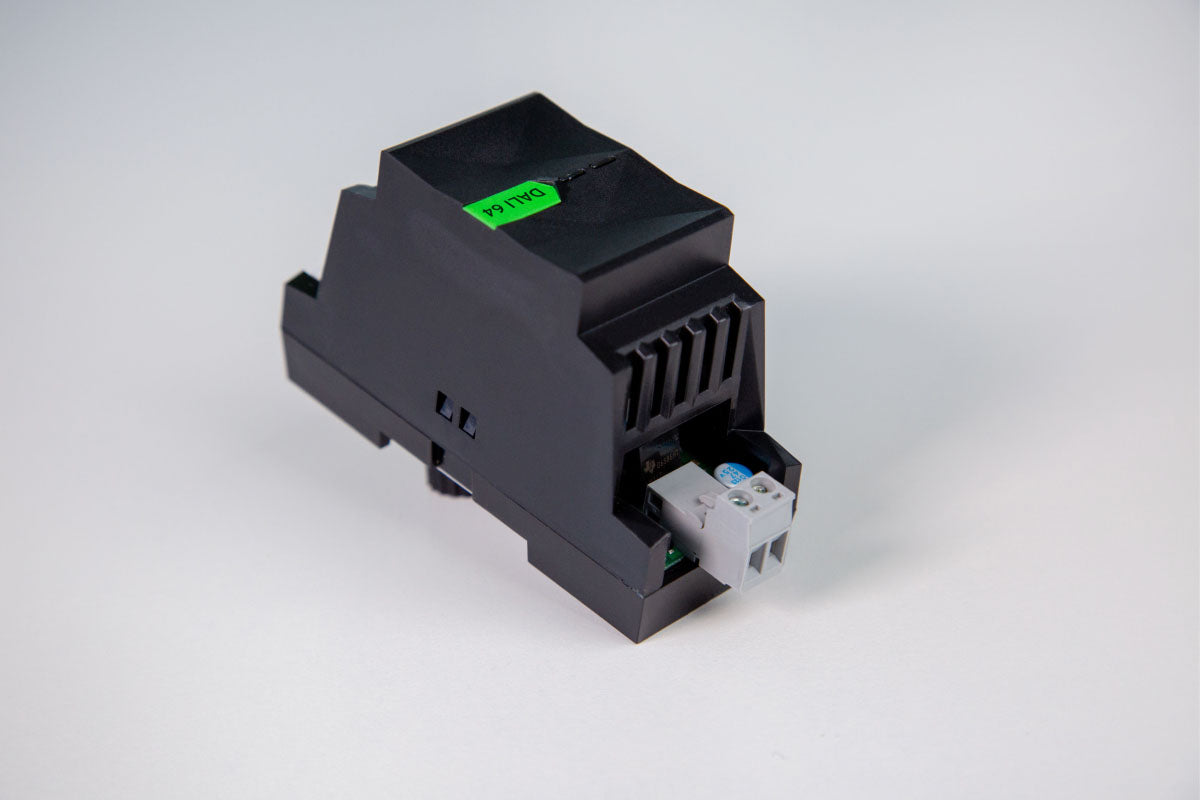

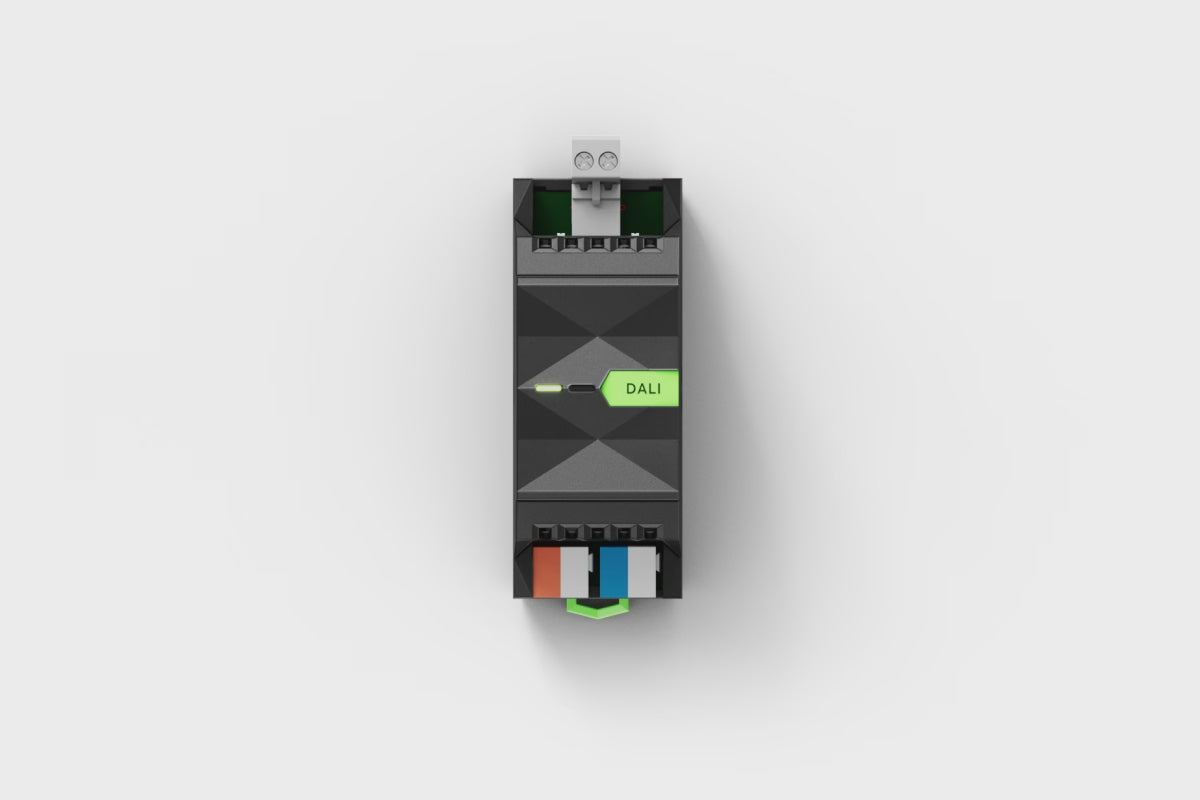

Dali Extension for 10 devices

DALI is a standardized wired interface for lighting that includes a generous selection of manufacturers and luminaires. The Loxone DALI Extension integrates these products into the Loxone ecosystem and can control up to 10 DALI devices.

Features:

• Up to 10 DALI devices / 16 groups
• Up to 300m cable length
• Supports DALI device types 0-8
• Supports DALI-2 instance types 1-4
• Integrated switchable power supply
• Simple and complete configuration in Loxone Config
• DALI-2 certified (supports DALI/DALI2 lights and exclusively DALI-2 certified sensors)
• Supports DALI broadcast mode

Technical details:
DALI:
DALI devices: max. 10 devices / 16 groups
DALI types: supported DALI device types: 0-8; supported DALI-2 instance types: 1-4
Bus length: max. 300 m / 985 ft at 1.5 mm²
Bus topologies: Bus, Line, Star, Tree
Bus voltage: High: 16 V, Low: 0 V (typ.)
Bus supply: guaranteed: 240 mA; max. 250 mA
