Loxone

Install Speaker 10 Master

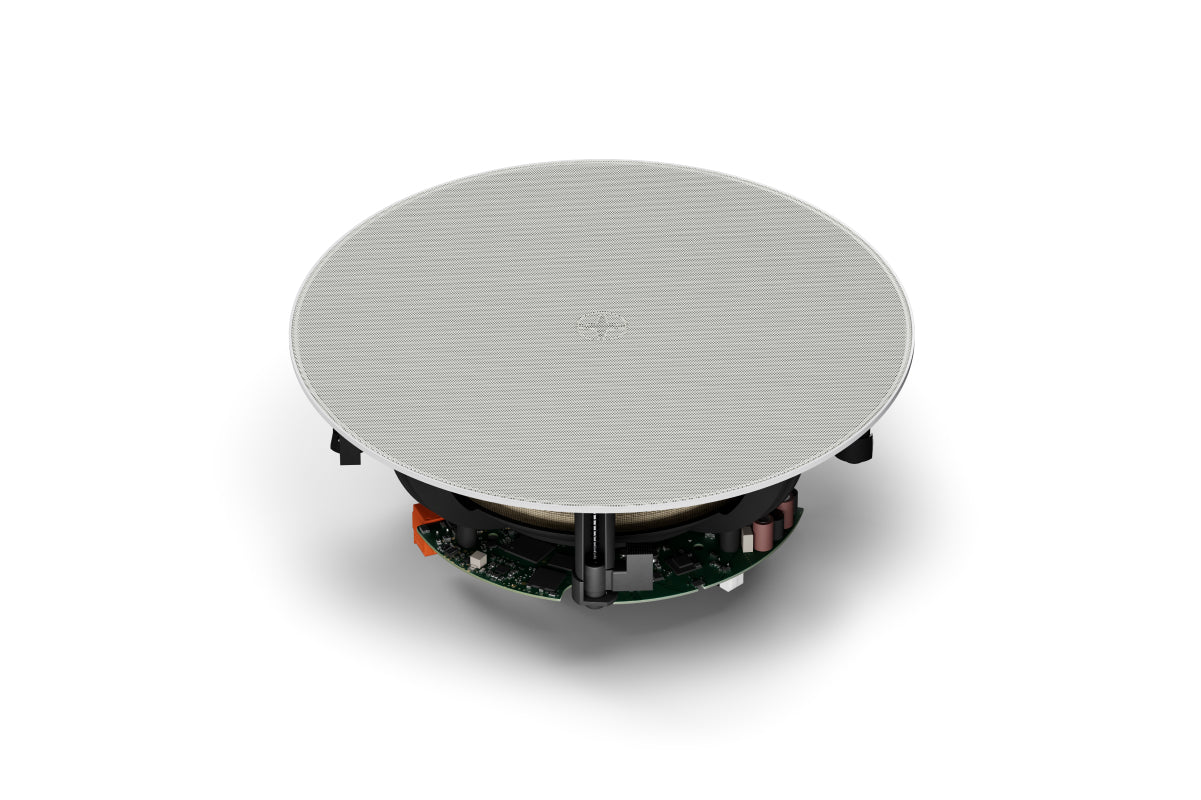

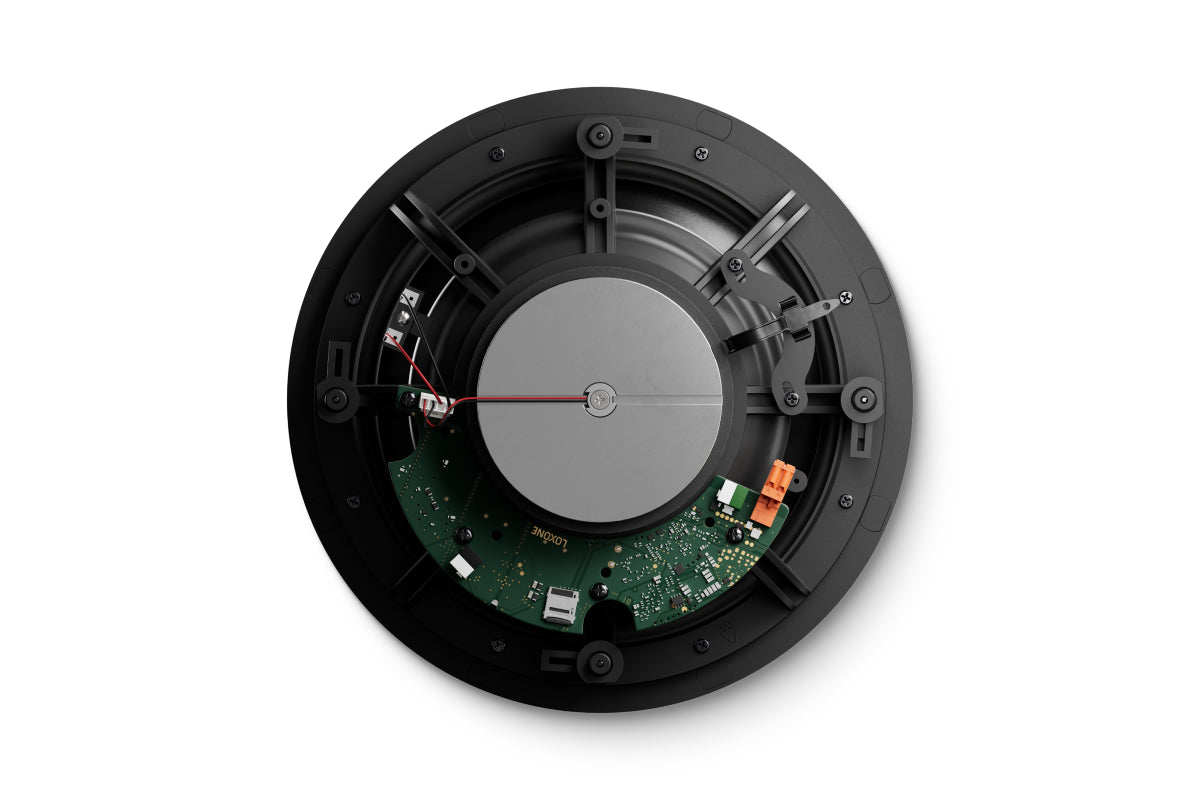

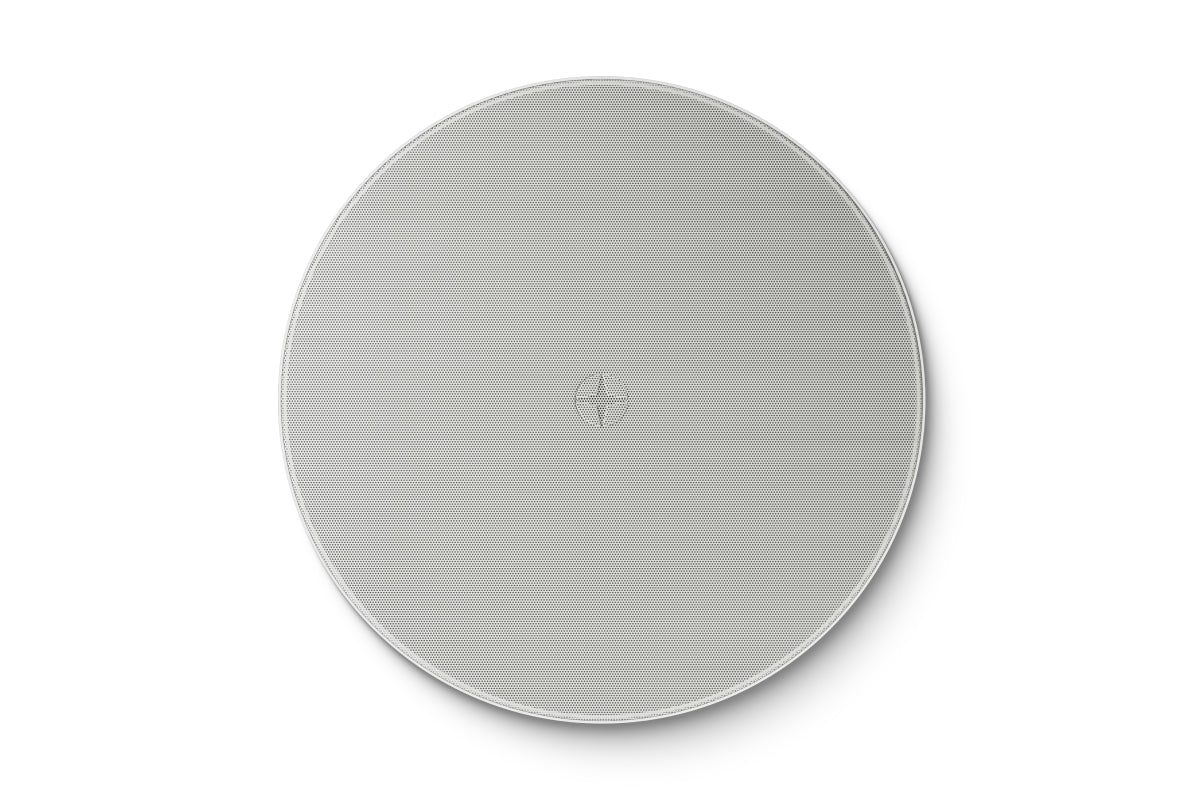

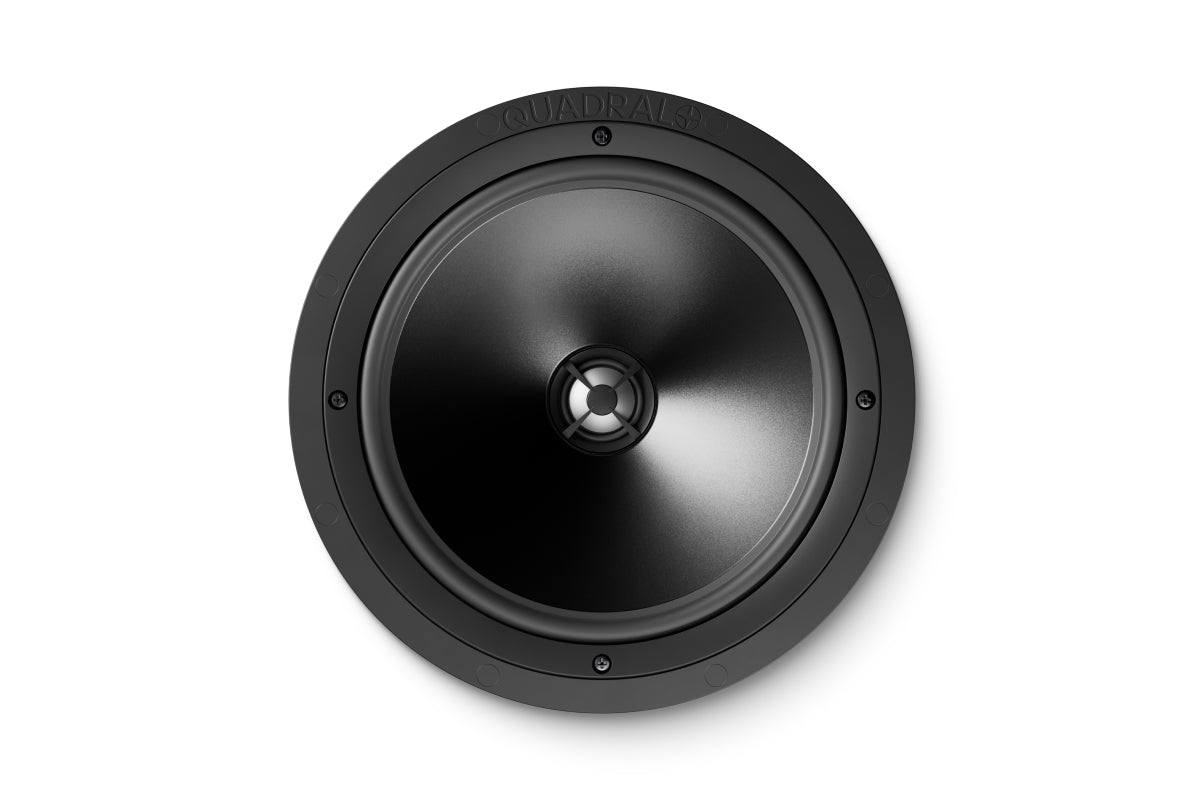

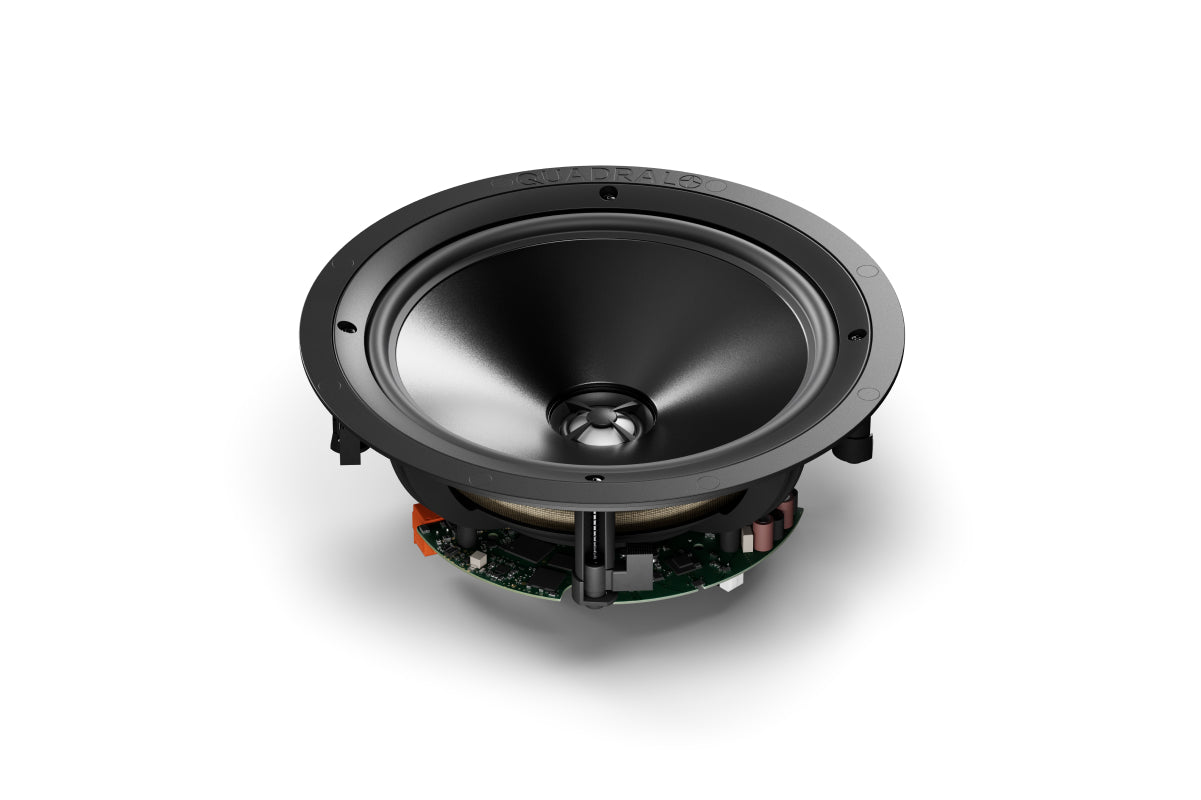

Install Speaker 10 Master

MYR 3,950.00
MYR 3,950.00
Sale Sold out
Shipping calculated at checkout.

The Install Speaker 10 Master impresses with its excellent audio properties and its numerous application possibilities. It is connected directly to an Audioserver or Miniserver Compact via Tree Turbo and can transmit the audio signal to a chain of up to 20 Client speakers. In this way, it forms a flexible audio solution that is scalable for any building size.

Features:

  • Countless functions such as text-to-speech, doorbell, alarms or audio notifications
  • Music streaming via Bluetooth
  • Single-frame construction for a very compact design with minimal acoustically disturbing edges and a maximum membrane surface
  • Up to 150m cable length (Tree Turbo/ Master Speaker)
  • Suitable for indoor and protected outdoor areas

Technical details:

Speaker type:
2-Way active speaker

Installation depth:
108 mm / 4.25"

Hole cut out size:
258 mm / 10.2" (Ø)

Max. panel thickness:
36 mm / 1.41"
View full details

Easy installation wherever you want

The Install Speaker 10 can be attached to ceilings, walls or even furniture in just a few simple steps. For use in open installation environments (e.g. a perforated acoustic ceiling), we strongly recommend the corresponding installation housing.

Product Install Speaker 7
Passive / Master / Client 		Install Speaker 10
Passive / Master / Client 		Install Sub 10
Master / Client
Assembly box for 10” Install Speaker
Item no.: 610159
Item no.: 610172		 ✔ ✔
Assembly box for 7” Install Speaker
Item no.: 610158
Item no.: 610171		 ✔
Housing for 10” Install Speaker
Item no.: 610164		 ✔ ✔
Installation housing Install 10
Item no.: 610160		 ✔
Installation housing Install 7
Item no.: 200202		 ✔
Concrete installation housing Install 7
Item no.: 610161		 ✔
Concrete installation housing Install 10
Item no.: 610173		 ✔
Individual construction of a housing
(e.g. for furniture)		 At least 7 L
Filling with damping material		 At least 17 L
Filling with damping material		 At least 30 L
Filling with damping material

← Swipe to see more →
