Loxone

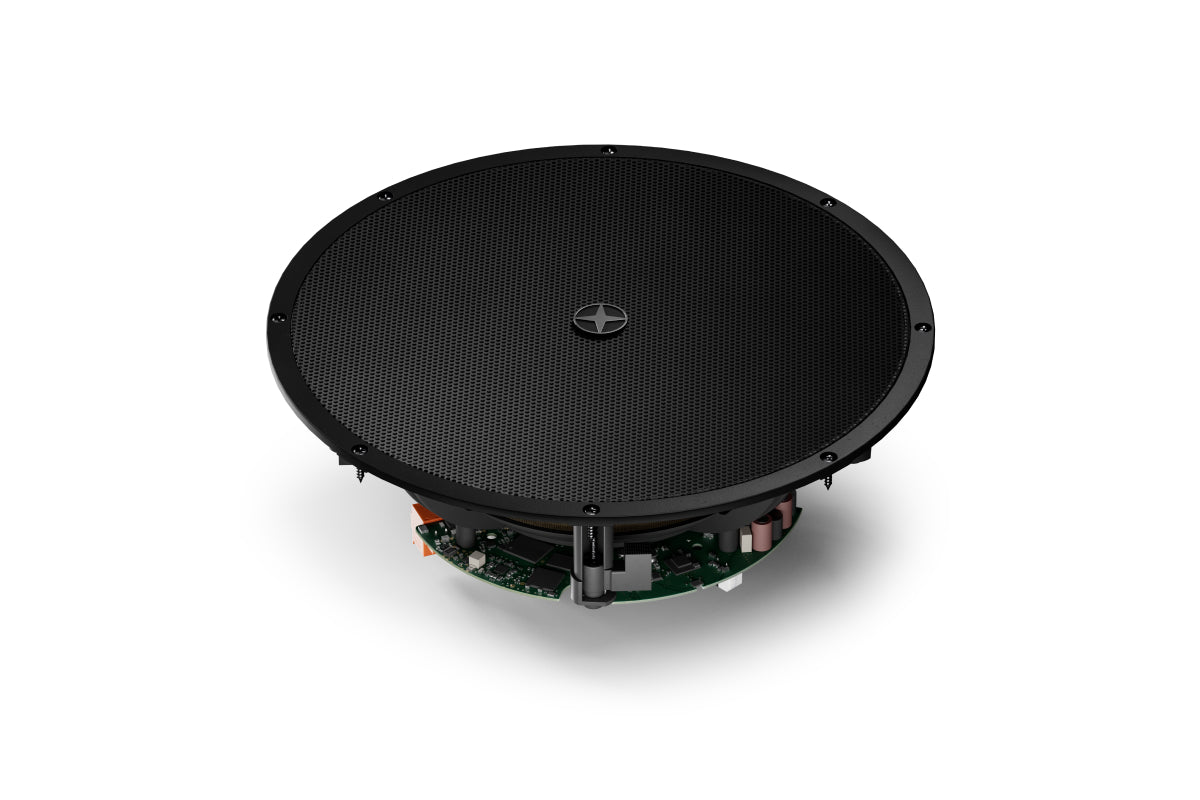

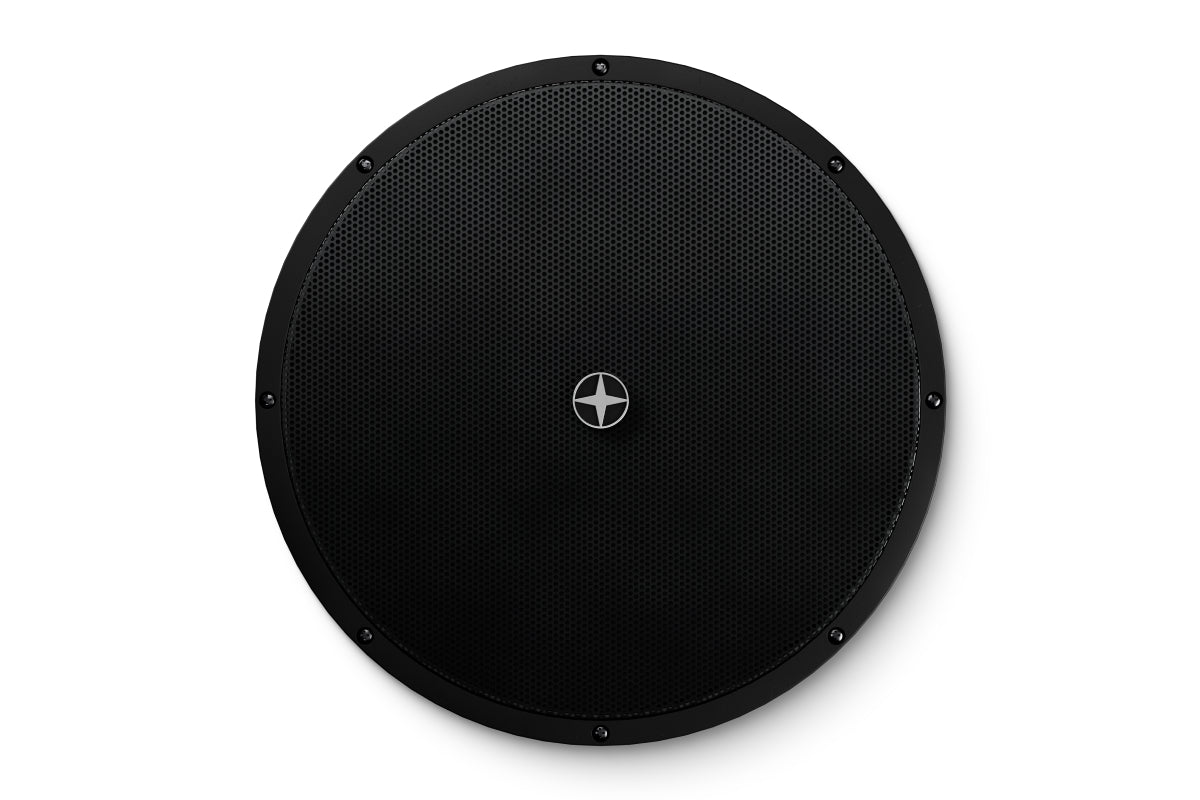

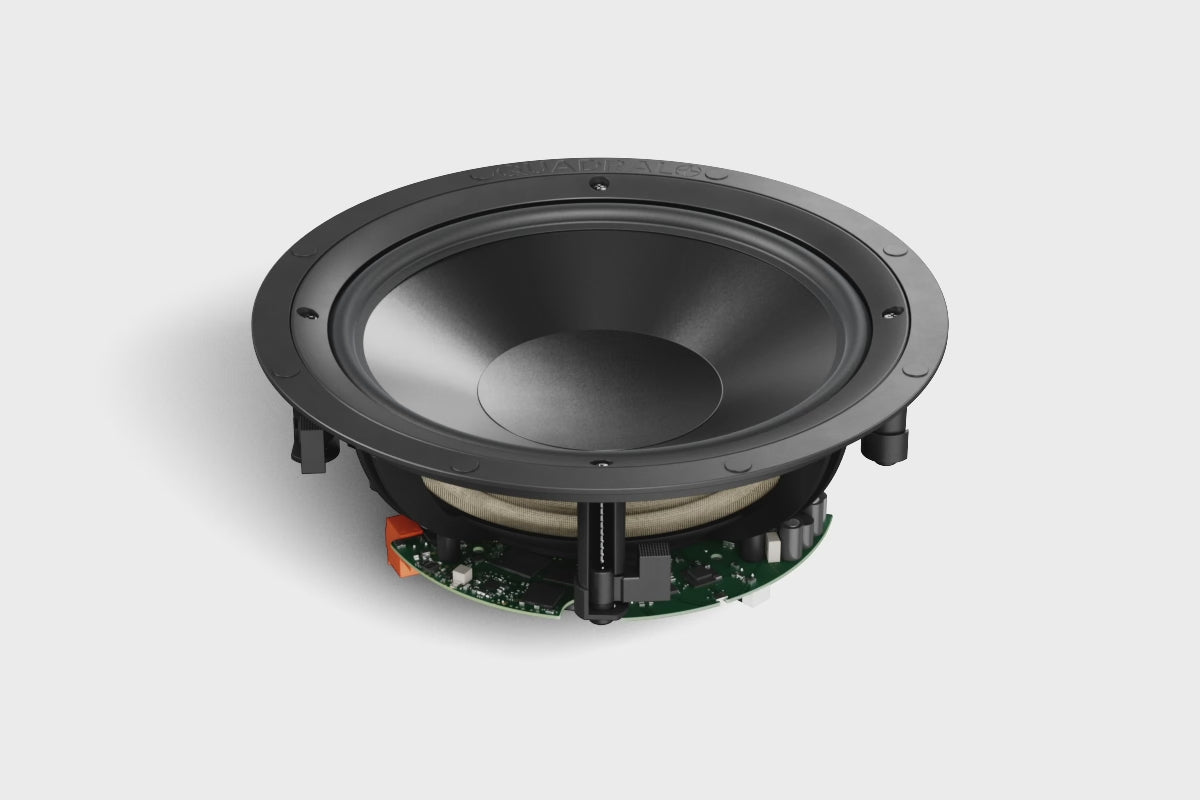

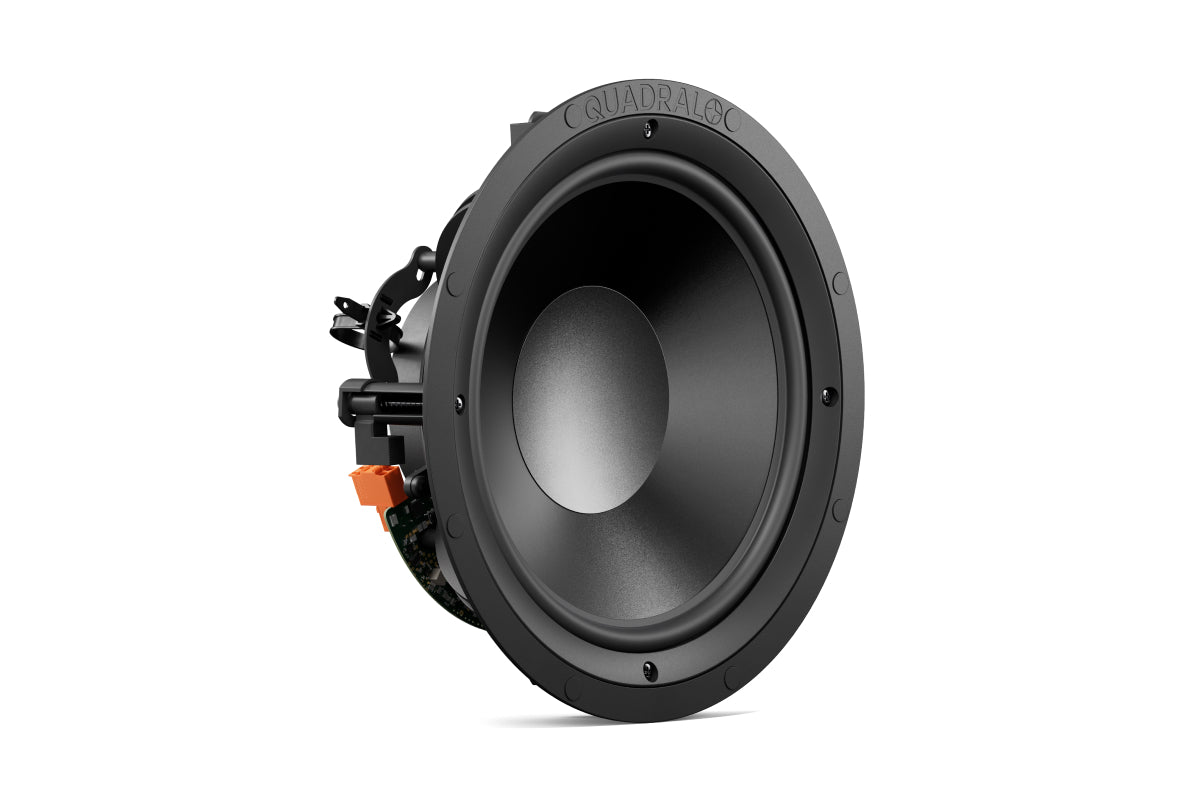

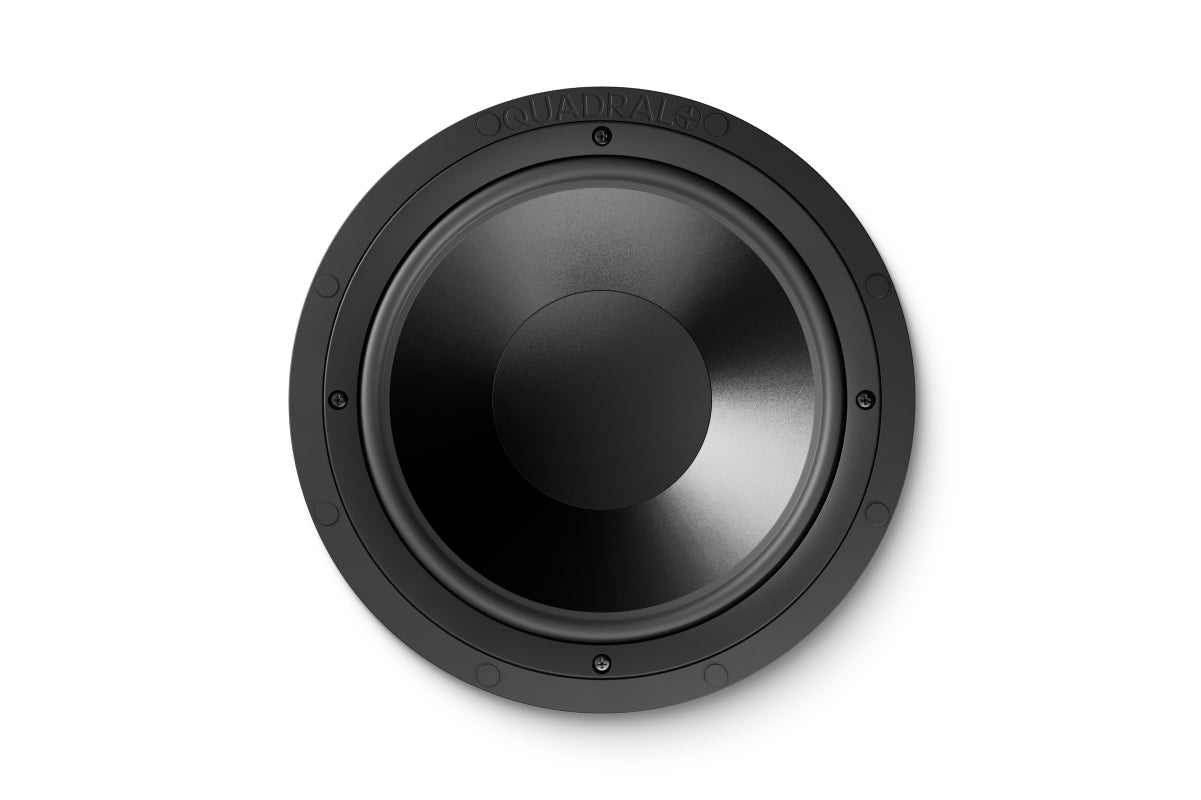

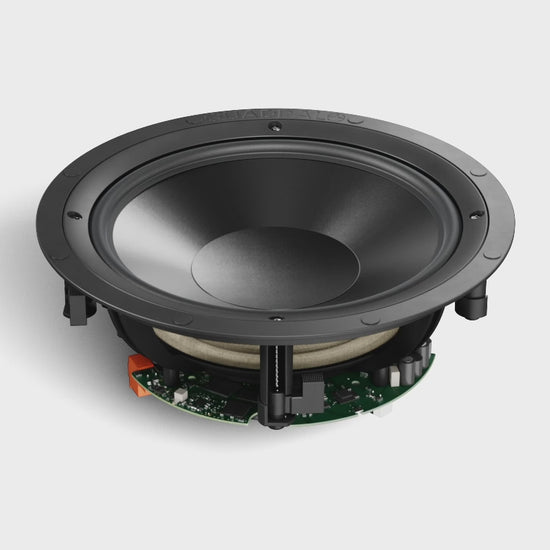

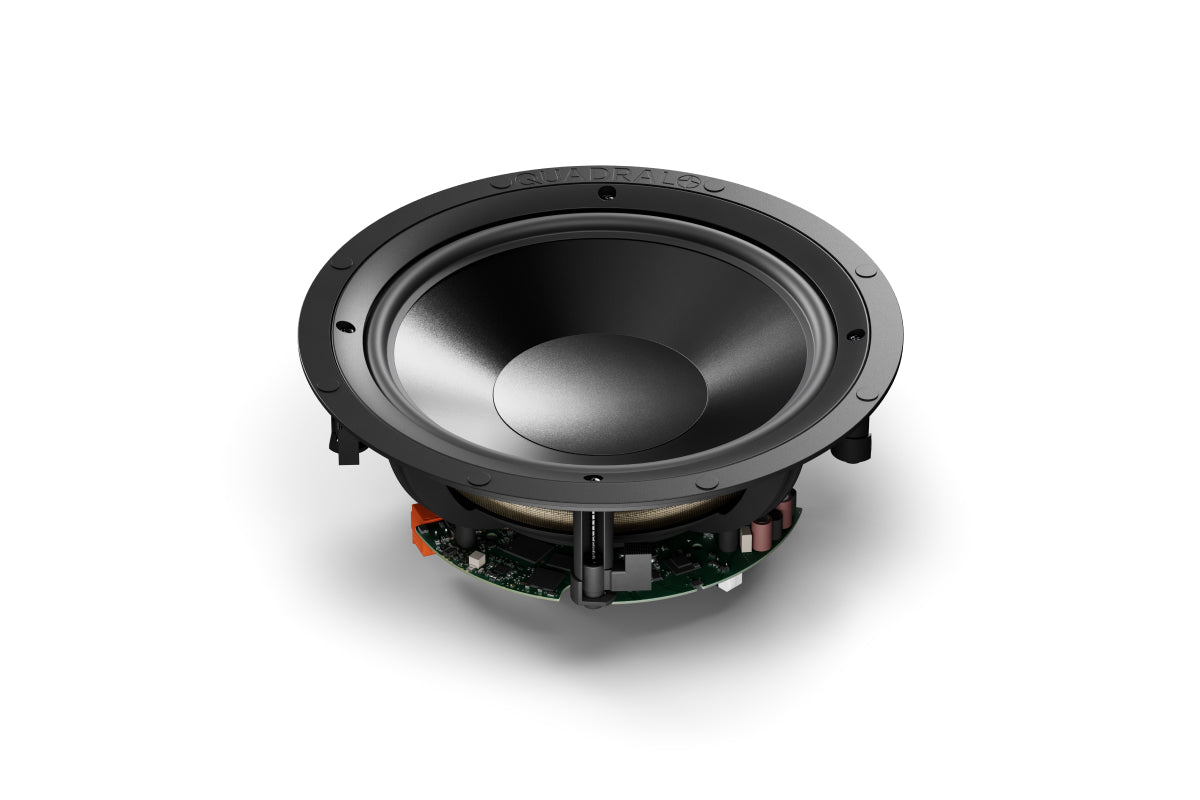

Install Sub 10 Master

Install Sub 10 Master

MYR 0.00
MYR 0.00
Sale Sold out
Shipping calculated at checkout.

The Install Sub 10 Master impresses with its excellent audio properties and its numerous application possibilities. It is connected directly to an Audioserver or Miniserver Compact via Tree Turbo and can transmit the audio signal to a chain of up to 20 Client speakers. In this way, it forms a flexible audio solution that is scalable for any building size. The Install Sub 10 Master expands any Master/ Client installation and significantly improves the sound quality of an audio installation by precisely reproducing low frequencies.

Features:

  • Full integration into the LOXONE system
  • Music streaming via Bluetooth
  • Up to 20 Client speakers via daisy chain per Master
  • Up to 150m cable length (Tree Turbo/ Master Speaker)

Technical details:

Speaker type:
active Subwoofer, dual voice coil

Supply voltage:
18VDC ... 26VDC

Hole cut out size:
258 mm / 10.2" (Ø)

Frequency range:
30 ... 100Hz
View full details
Install Speaker 7
Passiv/Master/Client		 Install Speaker 10
Passiv/Master/Client		 Install Sub 10
Master/Client
Surface Box for 10" Install Speaker Item No.: 610159 Item No.: 610172
Surface Box for 7" Install Speaker Item No.: 610158 Item No.: 610171
Box for 10" Install Speaker Item No.: 610164
Back Box Install 10 Item No.: 610160
Back Box Install 7 Item No.: 200202
Concrete Backbox for 7" Install Speaker Item No.: 610161
Concrete Backbox for 10" Install Speaker Item No.: 610173
Individual construction of a box (e.g. for furniture) At least 7 L Filling with cushioning material At least 7 L Filling with cushioning material At least 7 L Filling with cushioning material

Easy installation wherever you want

The Install Sub 10 Master can be installed on ceilings, walls or even furniture in just a few easy steps and with the appropriate installation housing. In contrast to the Install Speakers, the Install Sub 10 always requires a suitable installation housing.

Number of Speakers Recommendation

We recommend using a subwoofer when using 2-4 Install 7 speakers or when using two Install 10 speakers. Everything is possible, nothing is necessary: The use of a subwoofer is a matter of taste and depends on the room and individual needs. Even without a subwoofer you will get a great sound experience, but if you value particularly comprehensive sound with rich bass, you should add a subwoofer to your setup.
