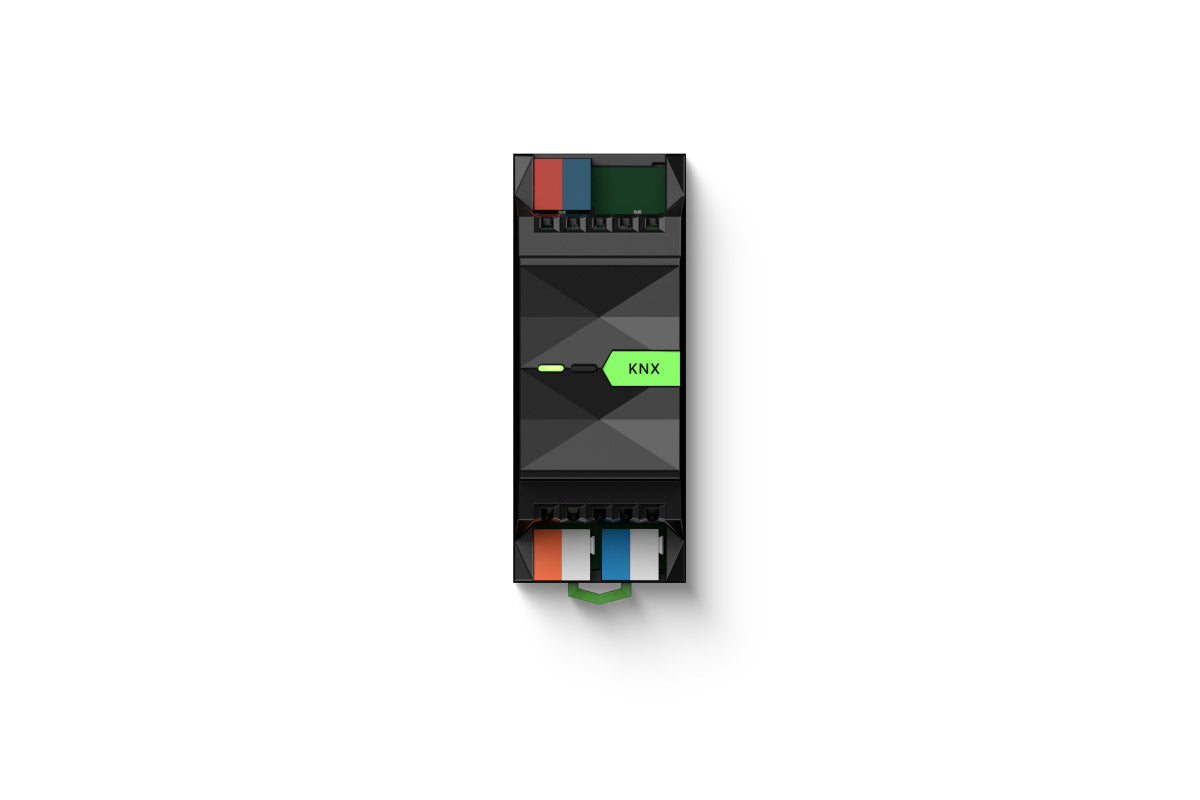

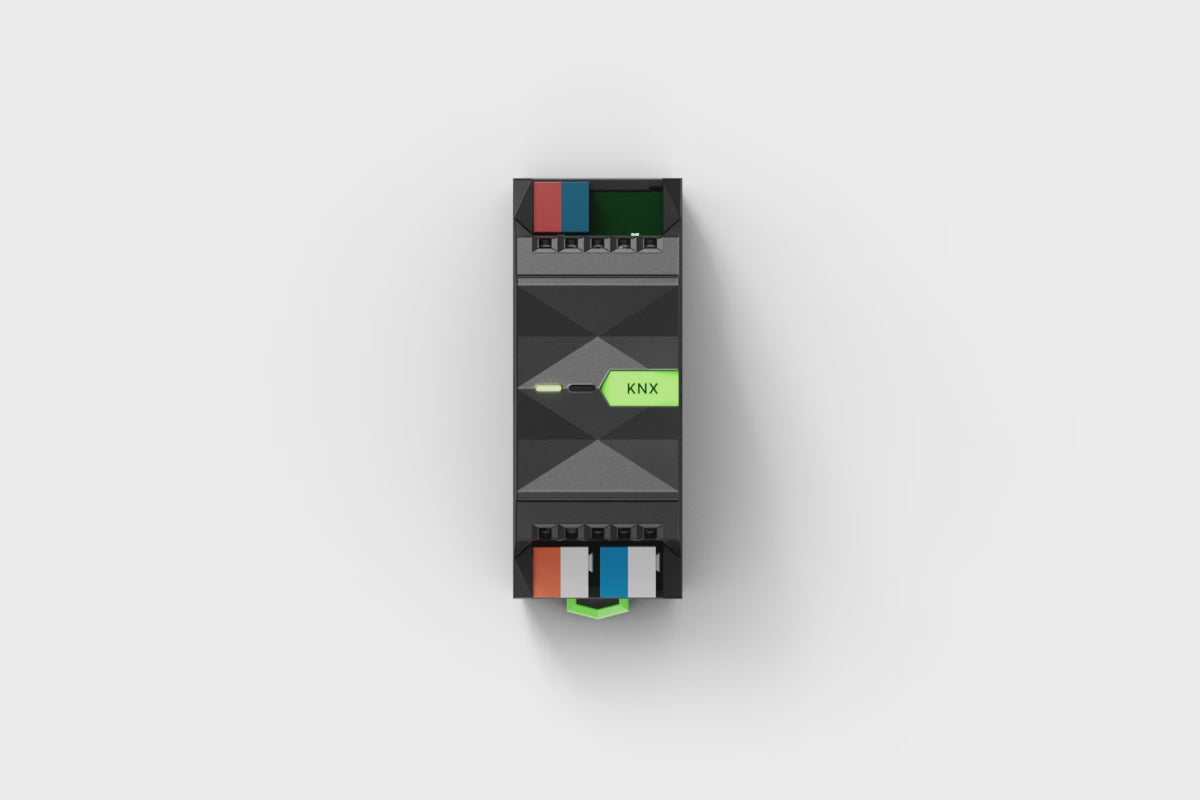

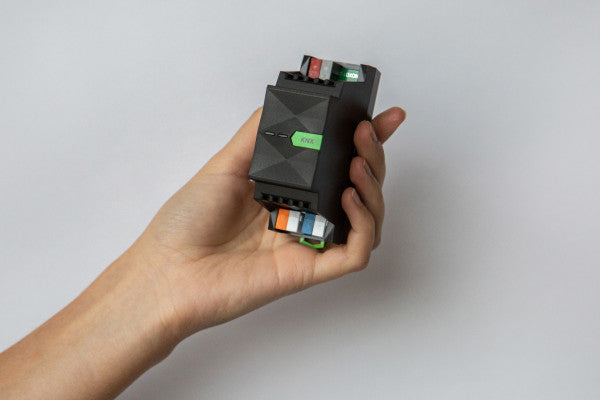

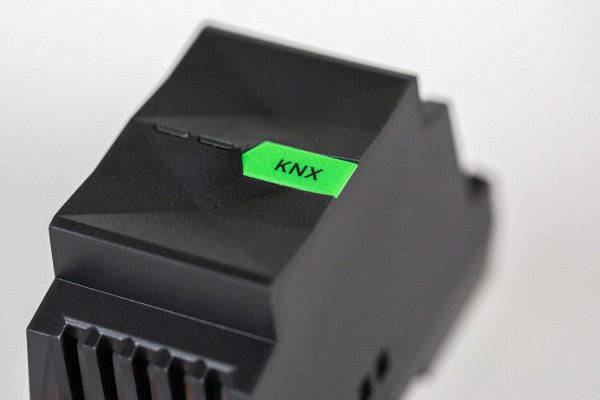

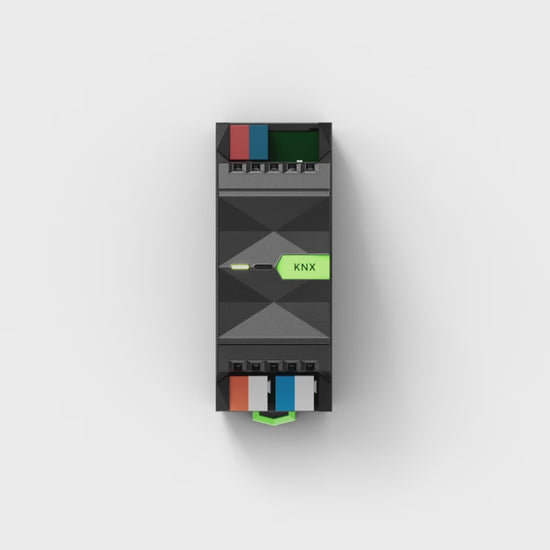

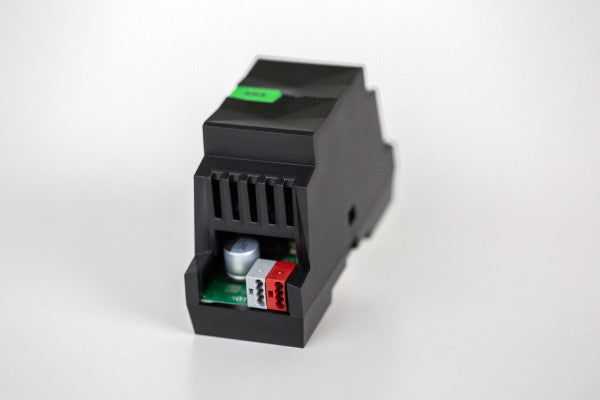

KNX Extension

The Loxone KNX Extension enables the integration of devices with a KNX interface.

Features:

• For the integration of up to 500 KNX group addresses
• Sends and receives group addresses of different data types
• Cable length up to KNX power supply: max. 350m
• Cable length up to first KNX device: max. 700m
• Total cable length KNX Bus: max. 1000m

Technical details:

Supply voltage:
10 … 28 VDC

Product dimensions:
88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units

Note: The KNX Bus requires its own special power supply (KNX/EIB power supply).
