Loxone

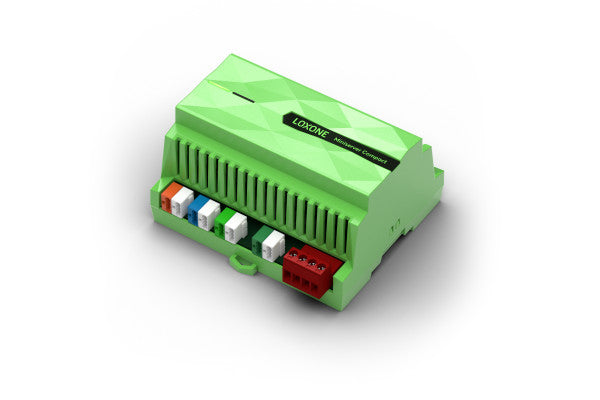

Miniserver Compact

Miniserver Compact

MYR 4,354.00
MYR 4,354.00
Sale Sold out

The high-performance Loxone Miniserver Compact in a compact design - especially for smaller distribution boxes. The Miniserver Compact has the Loxone Air, Tree and Tree Turbo technology already built in and the software of the Audioserver integrated. This makes it a multimedia all-rounder.

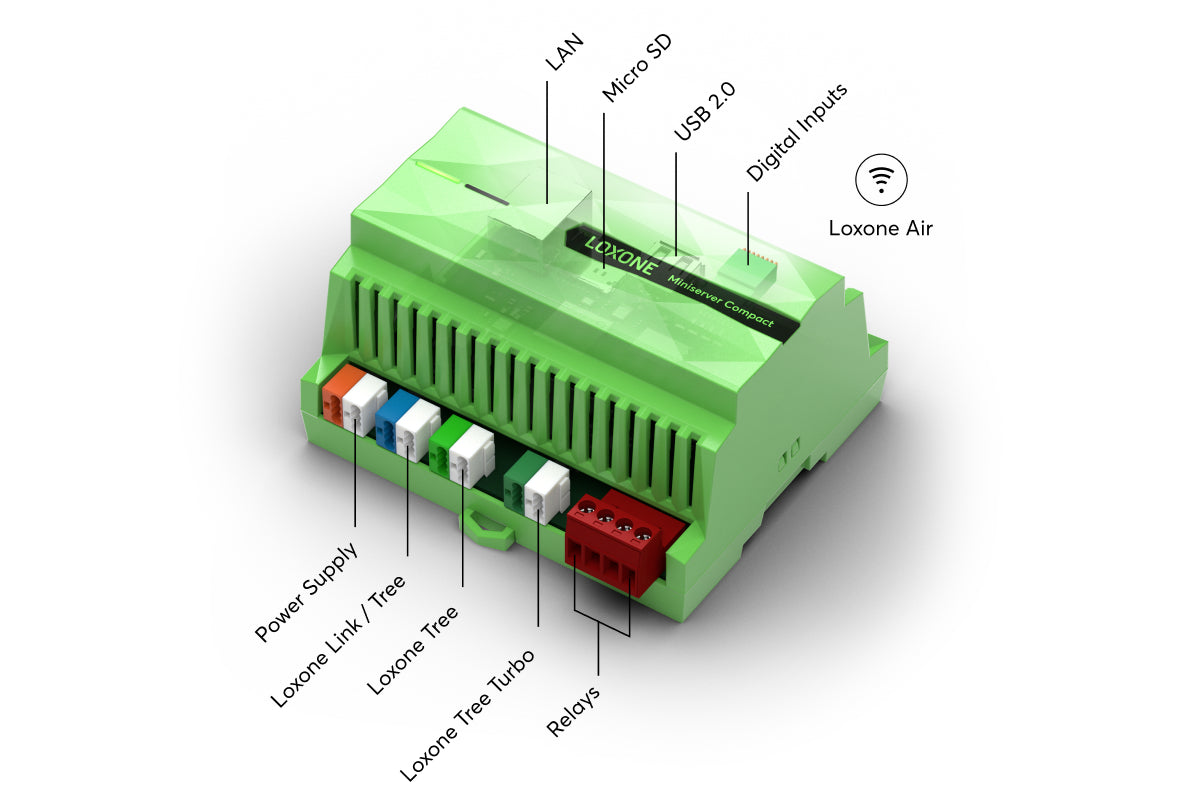

Features:

  • 4 digital inputs
  • 2 digital relay outputs, potential-free
  • Loxone Link, switchable to Tree in software: up to 30 Extensions or 50 Tree devices
  • Loxone Tree: up to 50 Tree devices
  • Loxone Tree Turbo: up to 10 Tree Turbo devices
  • Loxone Air: up to 128 Air devices


Technical details:

Product dimensions:
106.4x88x59mm / 4.19x3.46x2.32” (LxWxH), 6 division units
View full details

The Miniserver - the tool for home and building automation

Our Miniserver are the brain of every Loxone installation. We will show you the differences between the Miniservers, which Miniserver is suitable for which purpose and how the initial configuration of a Miniserver works.

30

For up to 30 Extensions

50

For up to 50 Tree devices


Cloudfree – Automation with Privacy

With Loxone, your data stays where it belongs – on your premises. It does not go out, and there is no dependency on the cloud. Our principle applies: Your project, your data! That philosophy makes Loxone projects 100% privacy-first.

Remote access via Remote Connect:
When you use our free Remote Connect service, you can connect to your Loxone installation at any time, from anywhere – cloud and third-party services stay disconnected but functionality remains high.


Loxone Config & App

The most powerful software for your building & home automation project. Free & included.

Central Hub

Control unit for automation

100%

Reliable & maintenance-free

128

For up to 128 Air devices

Audio

Audioserver included!

Miniserver Miniserver Compact Miniserver Go
Article No. 100335 100512 100336
Installation location DIN rail DIN rail Any
Space requirement 9 HP 6 HP 90 × 90 × 20 mm
Loxone Air ✓ expandable ✓ ✓ expandable
Loxone Tree ✓ ✓ ✓ expandable
Loxone Link ✓ ✓ ✓
Audio ready ✓ expandable ✓ ✓ expandable
LAN interface ✓ ✓ ✓
Digital inputs 8 onboard (expandable) 4 onboard (expandable) ✓ expandable
4 onboard (expandable) ✓ expandable ✓ expandable
Digital outputs 8 onboard (expandable) 2 onboard (expandable) ✓ expandable
Expandable with Extensions ✓ ✓ ✓
Data information in accordance with the EU Data Act:
The Loxone Miniserver Go is a connected product within the meaning of Regulation (EU) 2023/2854 (Data Act). In its default state, no data is transmitted to Loxone or any third party. All device data is processed and stored locally on the Miniserver. Once the user configures their own functions, they can access all generated data via the openly documented Loxone API in a structured, machine-readable format and reuse it if desired. There is no automatic or hidden data collection by Loxone.

Certificates and Compatibilities

Datasheet
