Loxone

Multi Extension Air

Multi Extension Air

Regular price MYR 4,574.00
Regular price Sale price MYR 4,574.00
Sale Sold out

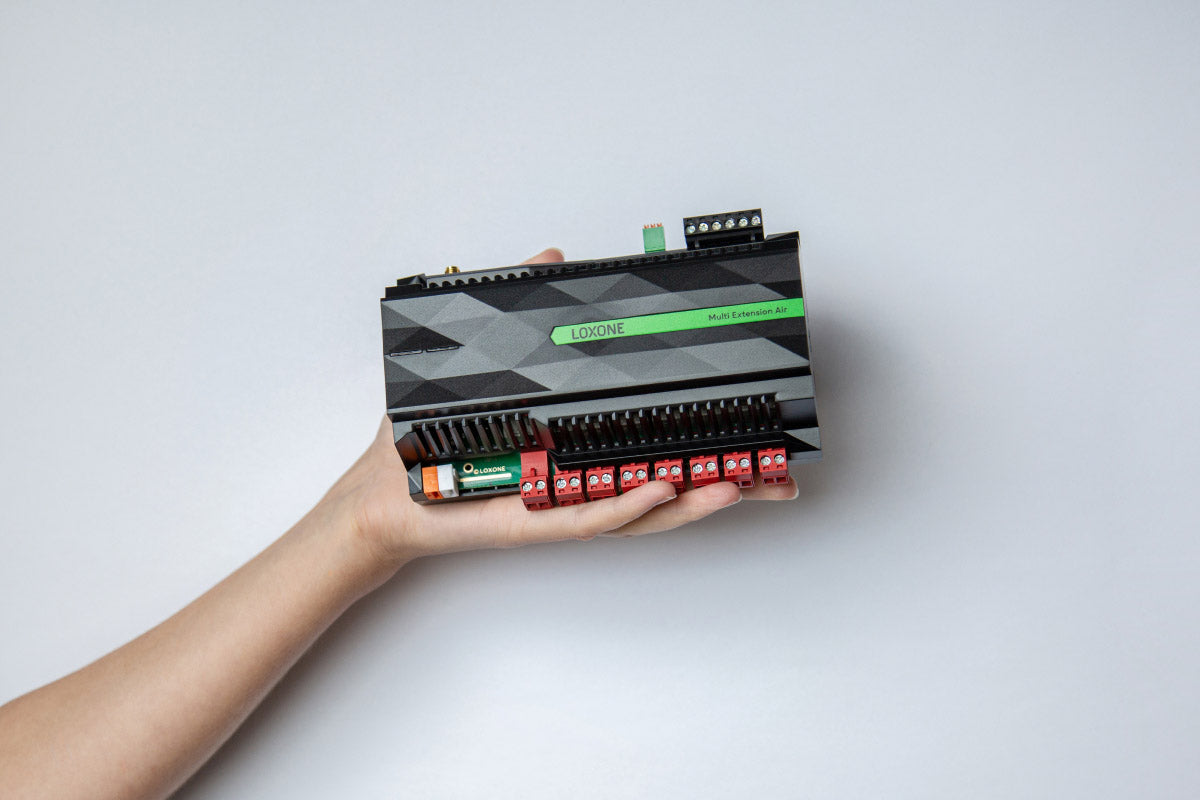

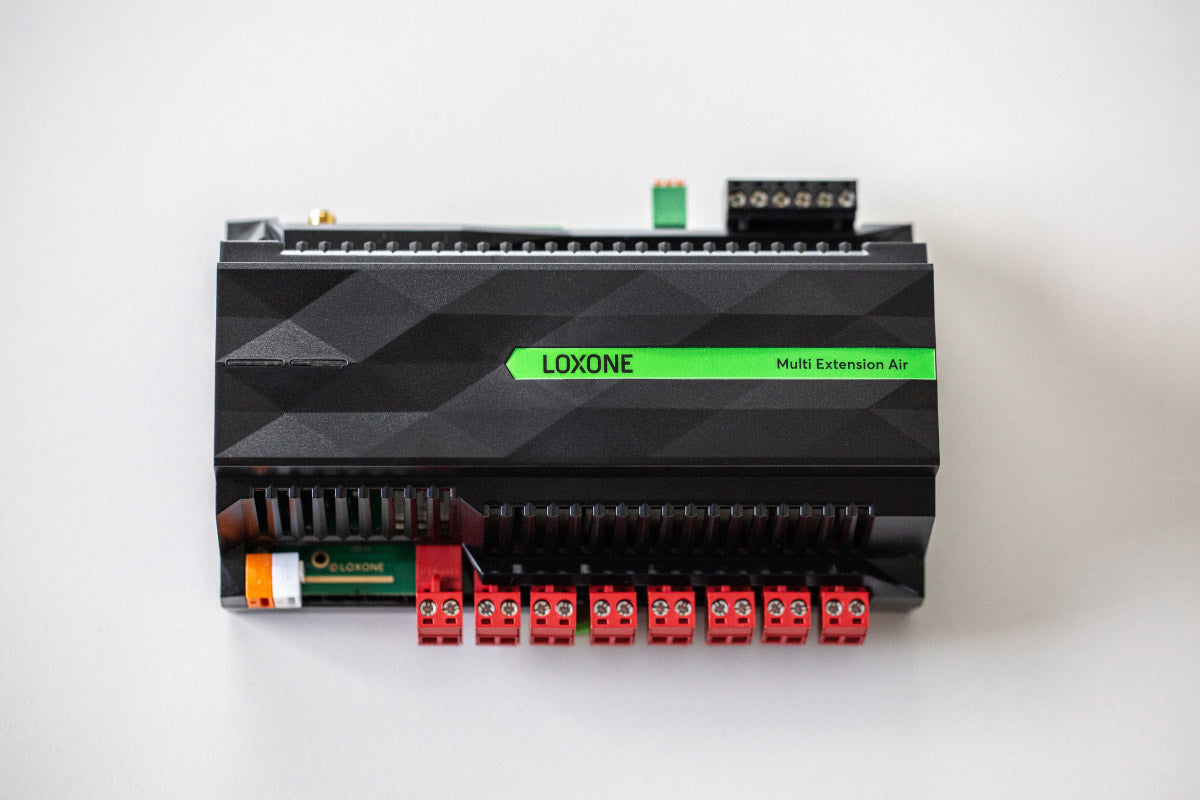

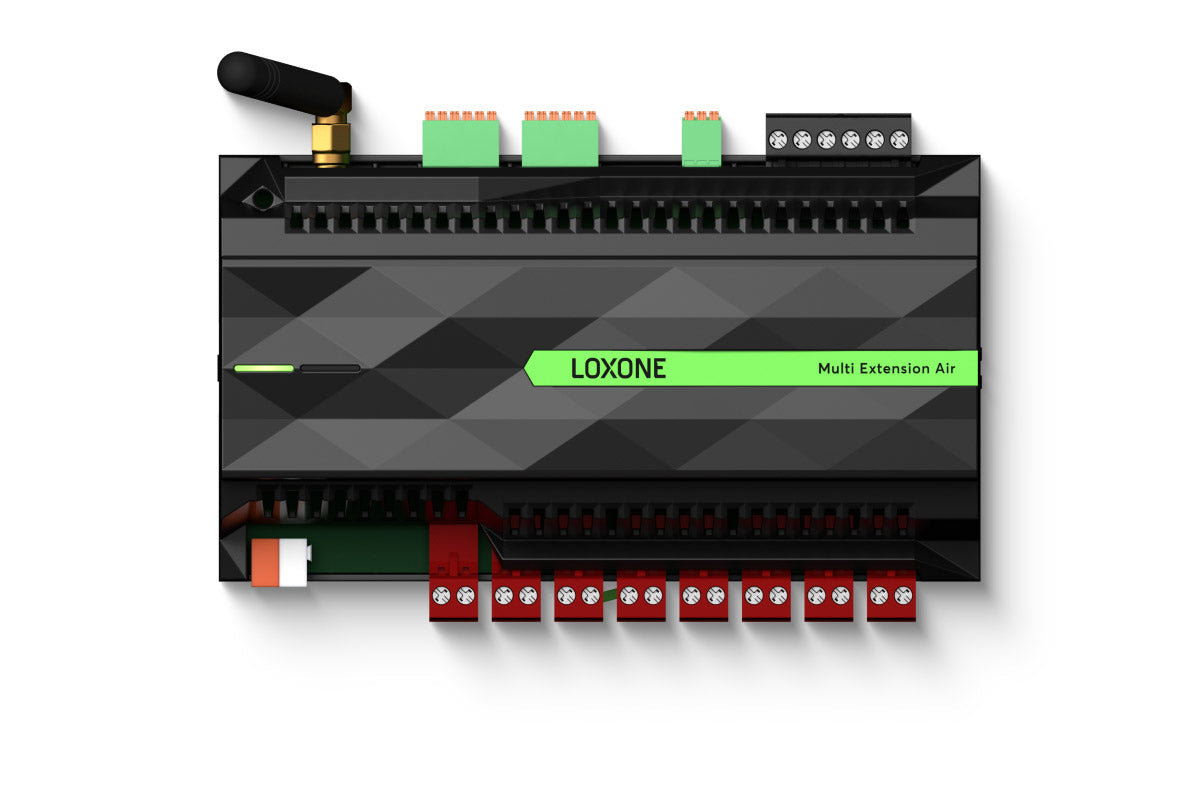

The Loxone Multi Extension Air provides 8 outputs with potential-free bistable relays12 digital inputsa 1-wire interface and 4 PWM outputs.

Features:

  • Can be placed anywhere, making it the most versatile extension for retrofitting projects
  • 12 digital inputs:
    0 - 28 VDC
    Can be used as a frequency counter (max 200Hz)
  • Outputs:
    8x digital: (relay), bistable, potential-free
    4x PWM: 2.1A per channel (12-28VDC)
  • 1-Wire interface:
    max. 20 sensors, (max. 50mA)

Technical details:

Supply voltage:
18 … 28 VDC

Product dimensions:
158 x 88 x 59 mm / 6.22 x 3.46 x 2.32” (L x W x H)

Quantity
View full details

The most versatile extension for your retrofitting projects

Our top applications

For your garden: Housed in the garden distributor, the Multi Extension Air controls everything from atmospheric garden lighting to automatic lawn and flower watering to garden monitoring.

For your pool: Automatic water refilling, integrated alarm system, summer bathing lighting, adjusted filter duration,... Together with the Multi Extension Air, the Miniserver takes over the pool control.

For your sauna: Place the Multi Extension Air independently of the Loxone Miniserver, for example in the floor distributor. Install a local button, switch the sauna heater on or off, ensure the right lighting mood, temperature and even more comfort!

Certificates and Compatibilities
