Loxone

Nano 2 Relay Tree

Nano 2 Relay Tree

MYR 847.00
MYR 847.00
Sale Sold out

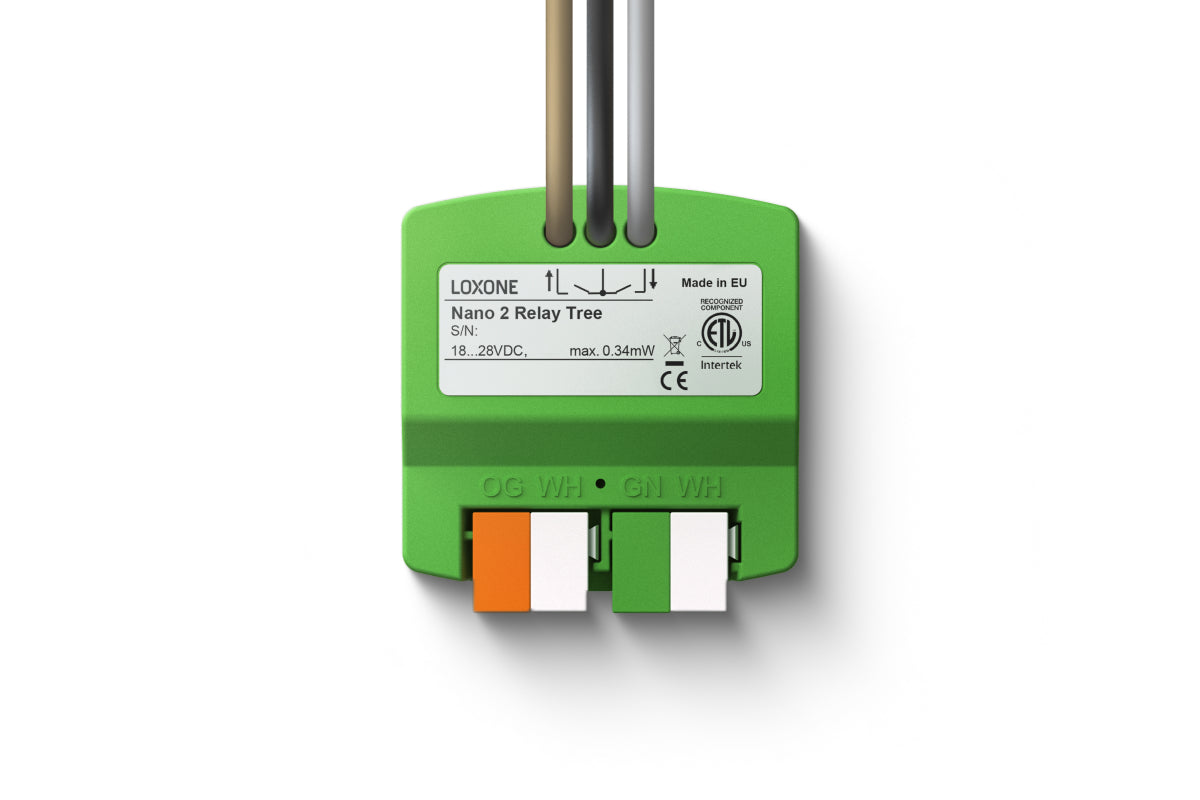

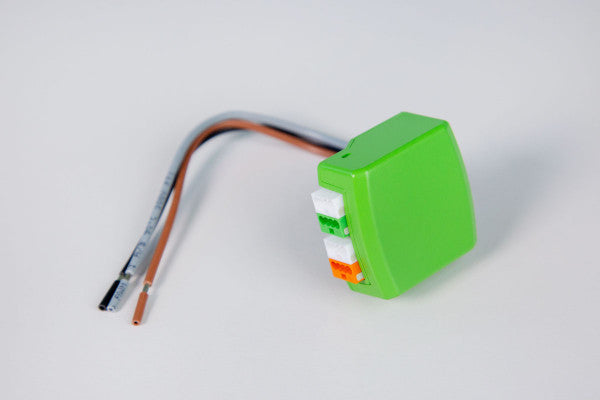

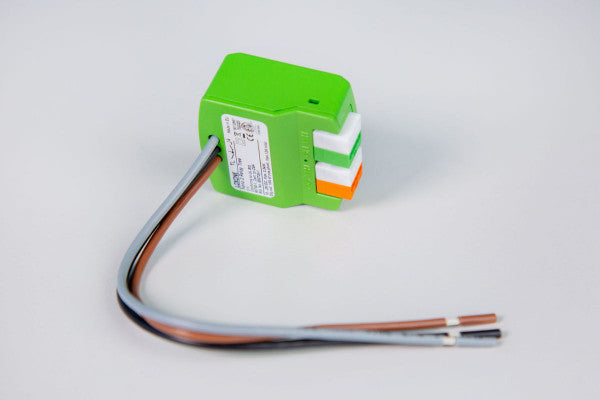

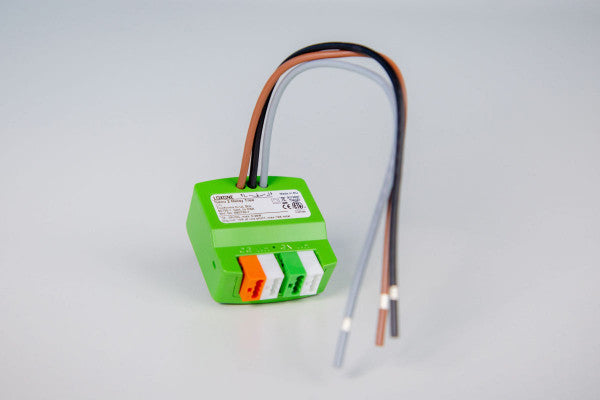

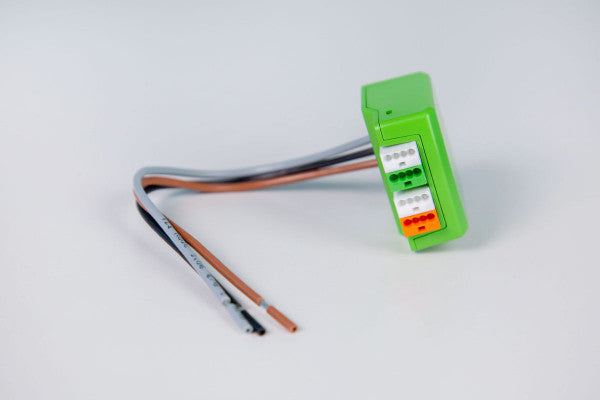

The Loxone Nano 2 Relay Tree is a compact module with 2 relay outputs that are suitable for shading devices or universal use.

Features:

  • Includes current flow detection
  • Fully automatic end position detection
  • Suitable for shading, lighting, fans and much more

Technical details:

Supply voltage:
18 … 28 VDC

Outputs:
2 digital outputs (Relays), dry contact, shared hot
max. 250VAC 10A at cosᵠ=1 (IEC)
or
max. 30VDC 10A
total load max. 12A

Product dimensions:
39.45x38.95x20.20mm / 1.55x1.53x0.80” (LxWxH)
View full details

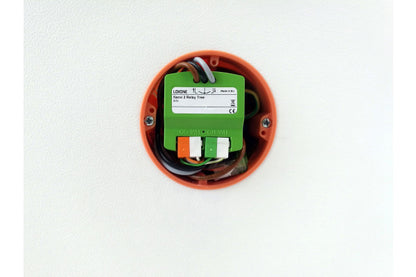

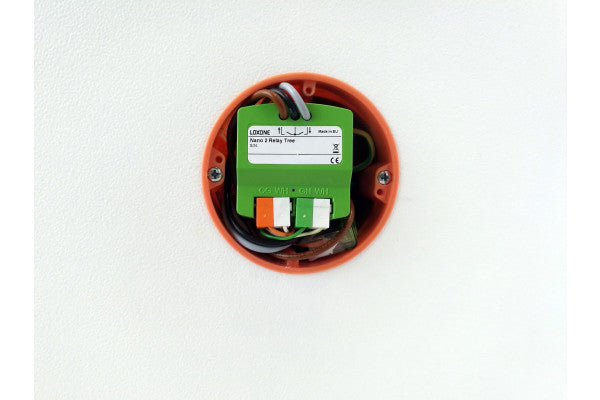

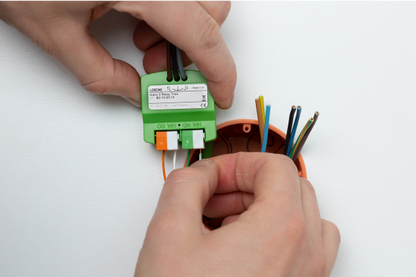

Flush-mounted actuator for every type of shading and more

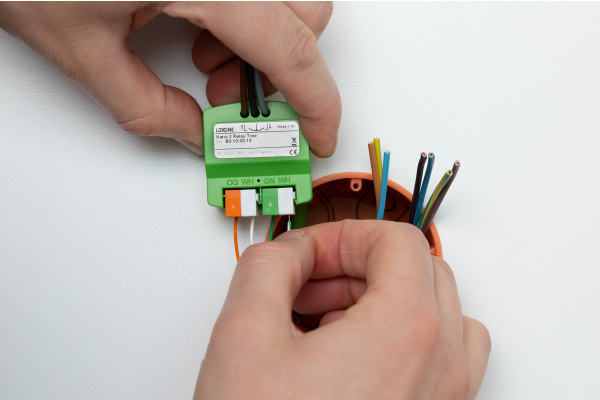

Whether electric shutters, curtains, blinds or awnings – with the new flush-mounted module Nano 2 Relay Tree, you can integrate shading into any of your customer projects in just a few simple steps.

The two powerful, potential-free relays enable the integration of all types of shading – whether in a single-family home, office, hotel, and much more.


Connection Diagram

Certificates and Compatibilities


Datasheet
