Loxone

Power Supply & Backup

Power Supply & Backup

MYR 6,205.00
MYR 6,205.00
Sale Sold out

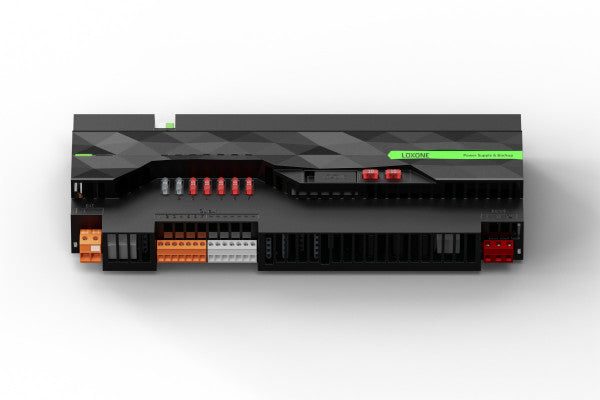

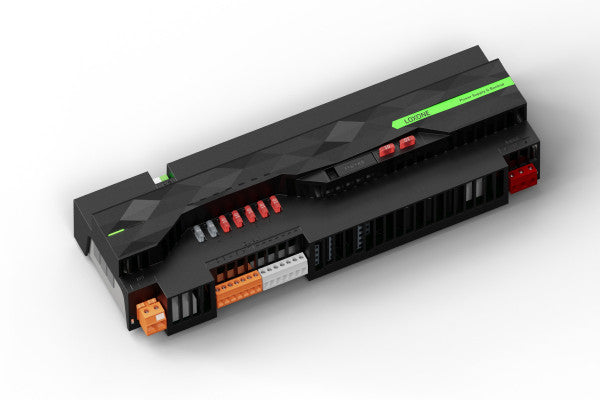

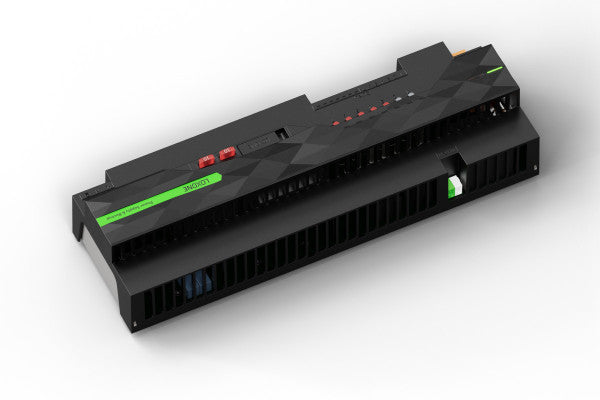

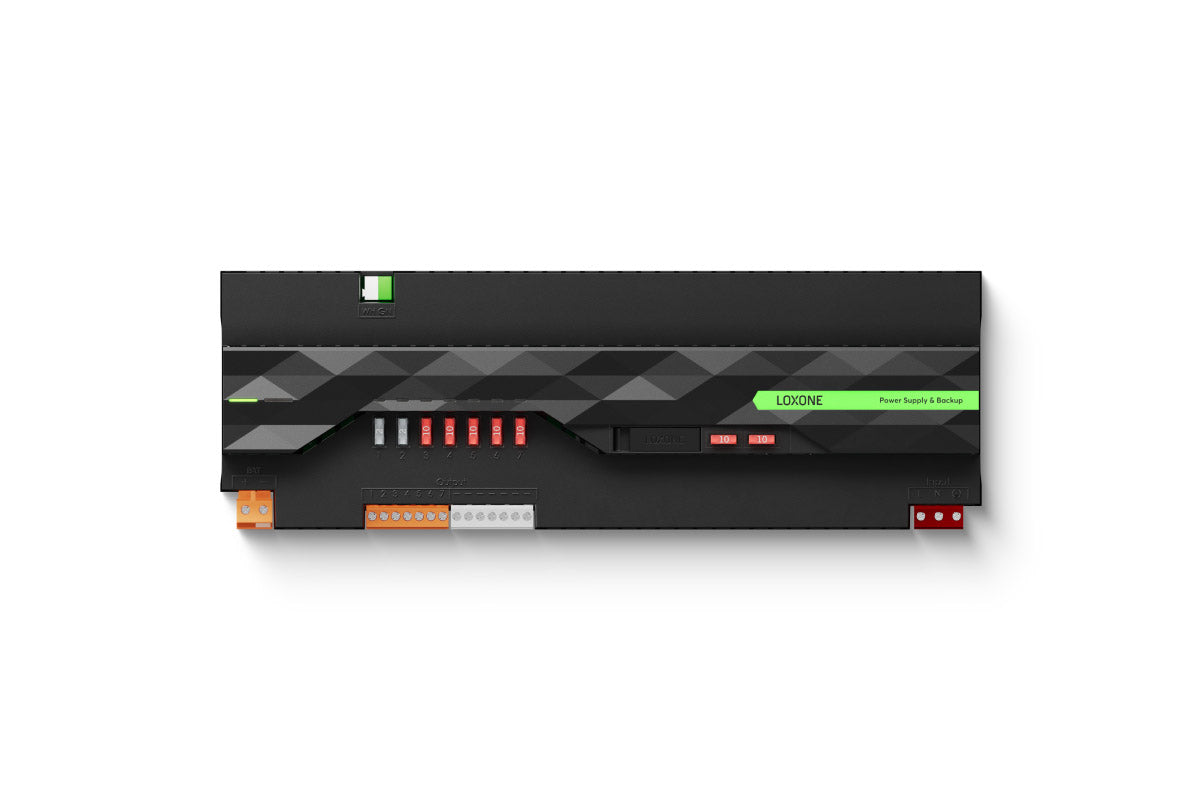

The Loxone Power Supply & Backup is a DIN rail power supply unit for up to 40A. It offers seven mains-isolated outputs with 24 VDC for up to 10A each. Each output has its own fuse and power measurement. You can also connect a 36VDC battery to supply your Loxone installation with power in the event of a power failure. Of course, without interruption.

Technical details:

Input current nominal / peak:4.6A / 6.9AProduct dimensions:
324x110x72.37mm / 12.76x4.33x2.85" (LxWxH), 18 division units
View full details

Power failure? No worries!

In the event of a power failure, the Power Supply & Backup supplies your 24V peripherals seamlessly via an external battery. If 24V lighting is integrated via Loxone, it can be automatically dimmed, thus ensuring an even longer battery life. You can also continue to open your doors using the NFC Code Touch - without a key. And the alarm system remains active even in the event of a power failure.

Advantages of individual insurance

  • If a fuse blows, you will be notified in the Loxone app. An LED on the housing also indicates the blown fuse.
  • In addition, the usual notification types (push, call, email) can be used.
  • Saves space and extra terminals in the distributor, as each outlet can be protected according to the cable cross-section.

Full control – always everything in view

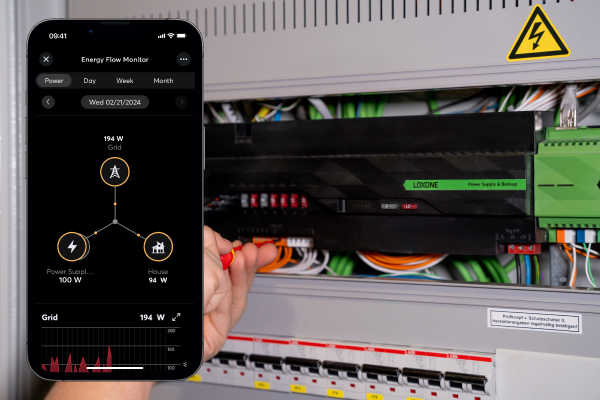

Seamless integration into the energy management solution from Loxone.

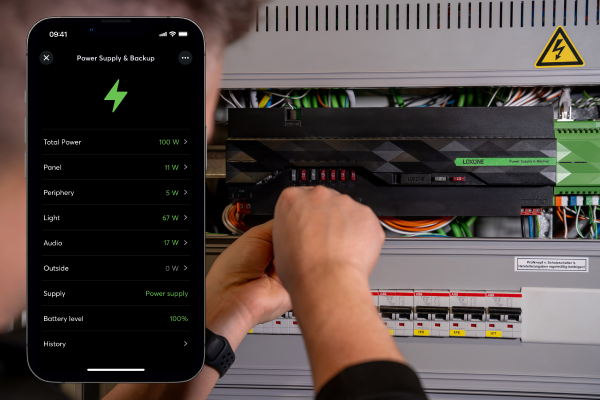

  • Record electricity: Power measurement of all 7 individual channels and total power
  • Statistics: Automatic recording and display of power curves and meter values
  • Keep an overview: Seamless, automatic integration into the energy flow monitor
  • Even in the event of power outages: you know how long the battery can supply the building

More than just a power supply

The Power Supply & Backup can also be installed independently of a Loxone installation and used with a battery for the backup function.

Which battery is the right one?

We recommend 36VDC lead-acid batteries (e.g. sealed gel or AGM batteries) with a capacity of up to 200 Ah (see data sheet for details).

Power for the entire building

With just one product you can supply and secure an entire building in an energy-efficient manner. This saves space in the distribution board and money!

Traditional power supplies Power Supply & Backup
24V output voltage ✓ ✓
Backups included ✕ ✓
Energy metering included ✕ ✓
Operational monitoring ✕ ✓
Backup option included ✕ ✓
Dividing units Distributor 25TE 18TE
Time of installation 3h 0,5h
Standby power 22W 8W
Price €€€ €

Tip: If the router to which the Miniserver is connected is supplied via a voltage regulator that is connected to the Power Supply & Backup, the Miniserver will remain externally accessible and will keep you informed.

Certificates and Compatibilities

Datasheet
