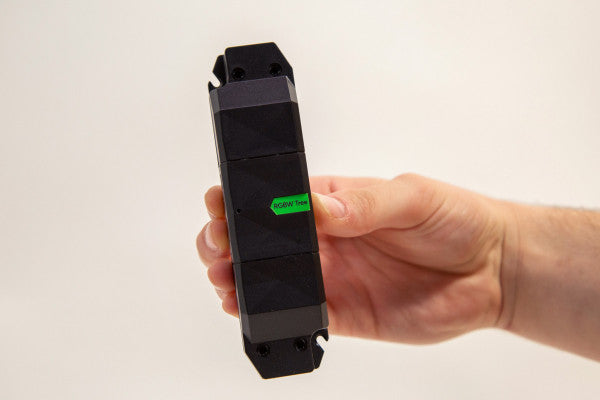

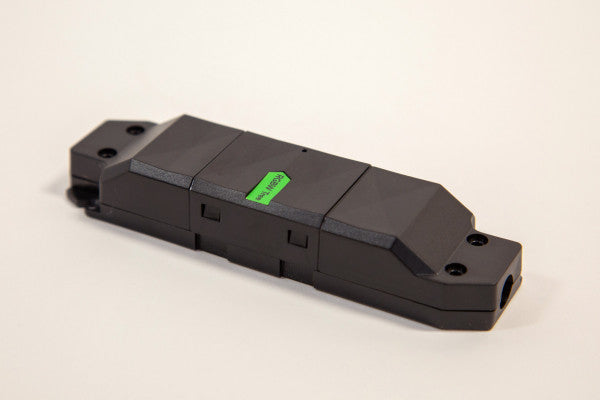

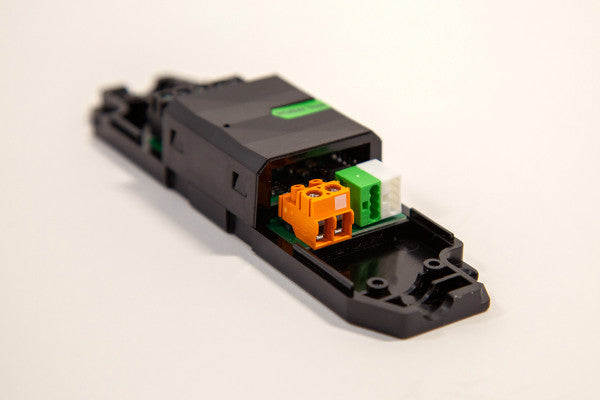

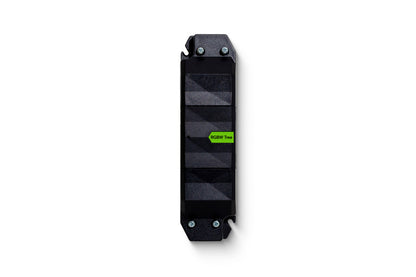

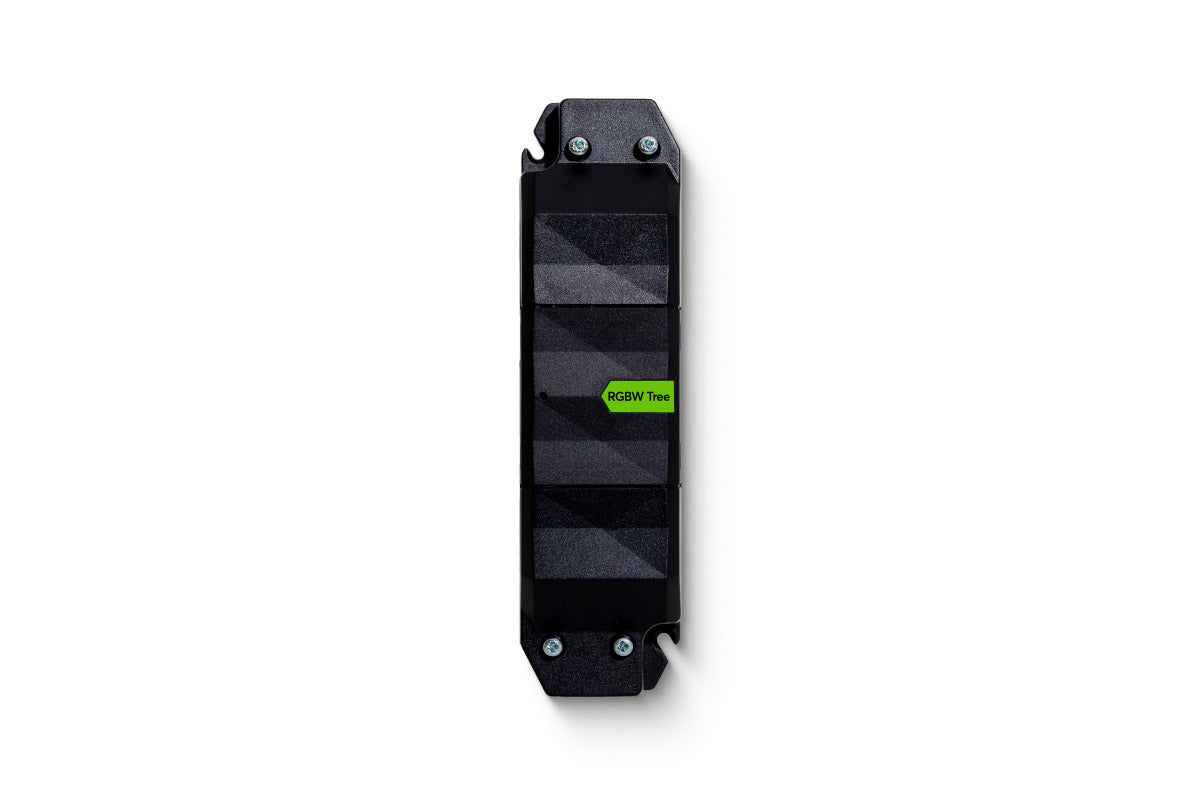

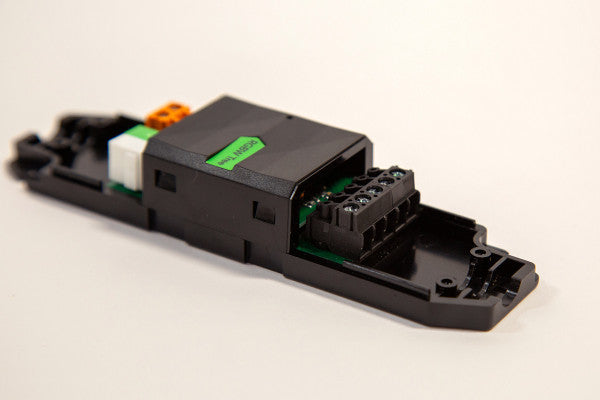

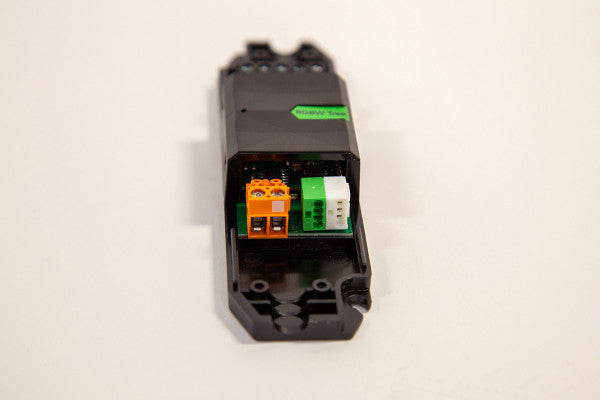

RGBW 24V Compact Dimmer Tree

The Loxone RGBW 24V Compact Dimmer Tree has 4 PWM outputs for dimming low-voltage LED lamps.

Features:

• 4 PWM outputs
• For unique color light moods
• Compact design for decentralized use
• Including strain relief
• Can be used for RGB or RGBW color light control or as individual channels with 50 watts per channel (at 24VDC)

Technical details:

Supply voltage:

12 … 28 VDC

Product dimensions:
136x36x22.6mm / 5.35x1.42x0.89” (LxWxH)

Outputs:
4 PWM Outputs (max. 2.1A per channel)
100W at 12V
200W at 24V

max. wire length to LED: 30m / 98ft
