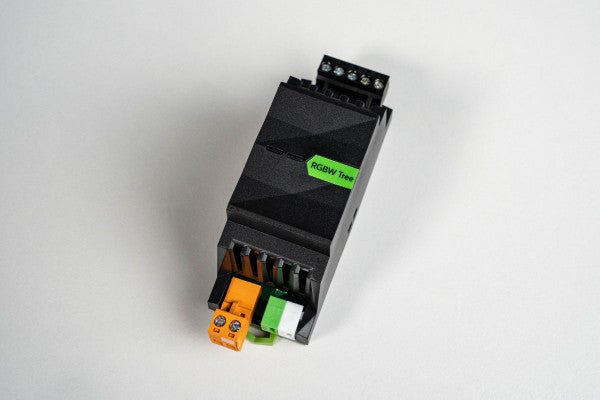

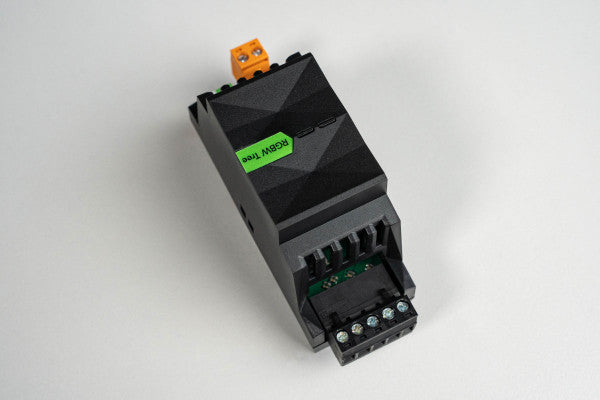

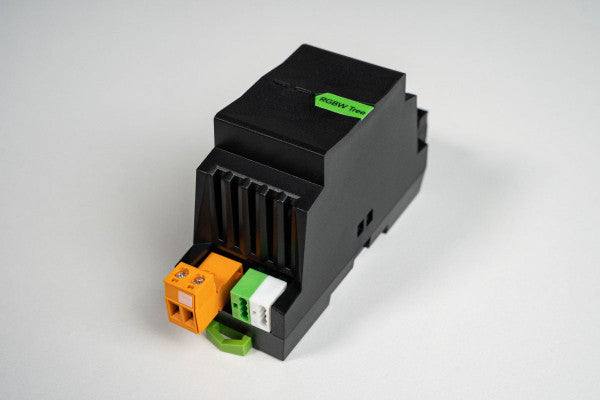

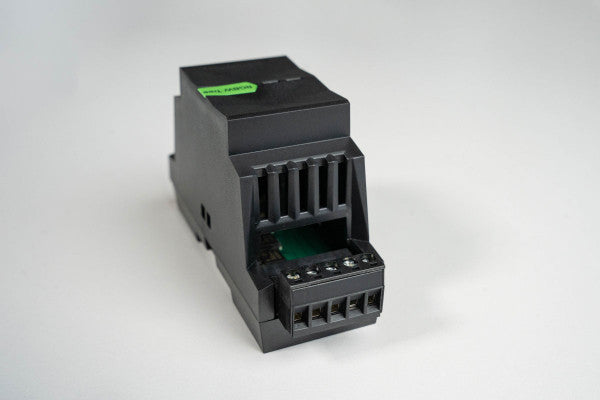

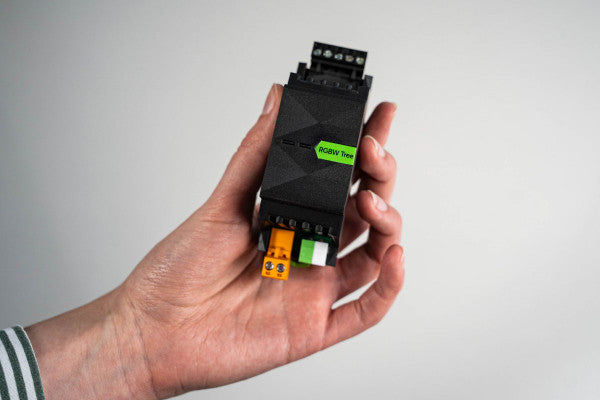

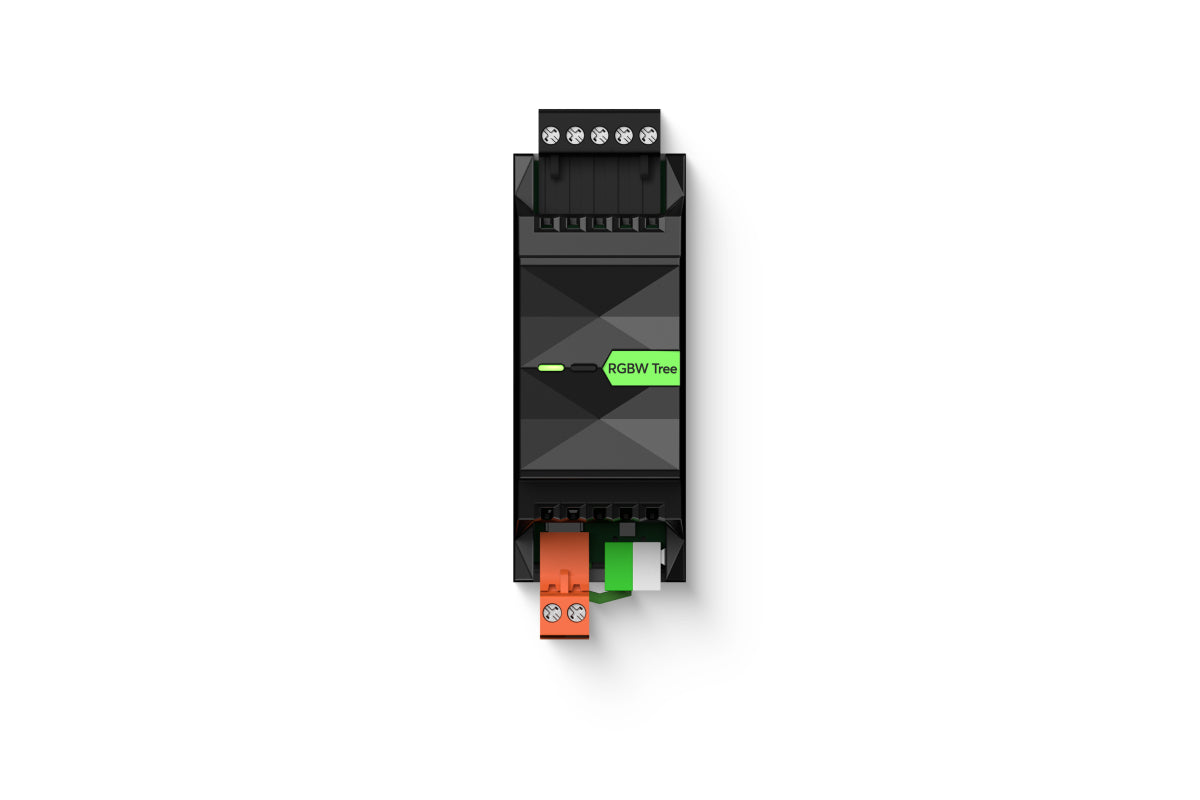

RGBW 24V Dimmer Tree

The Loxone RGBW 24V Dimmer Tree has 4 PWM outputs for dimming low-voltage LED lamps.

Features:

• 4 PWM outputs
• For unique RGBW color light moods
• Max. cable length to LED: 30m
• Can be used for RGB or RGBW color light control or as individual channels with 50 watts per channel (24VDC)

Technical details:

Supply voltage:

12 … 28 VDC

Outputs:
4 PWM outputs (max. 2.1A per channel)
100W at 12V
200W at 24V

max. wire length to LED: 30m / 98ft
