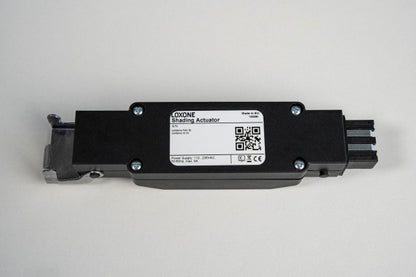

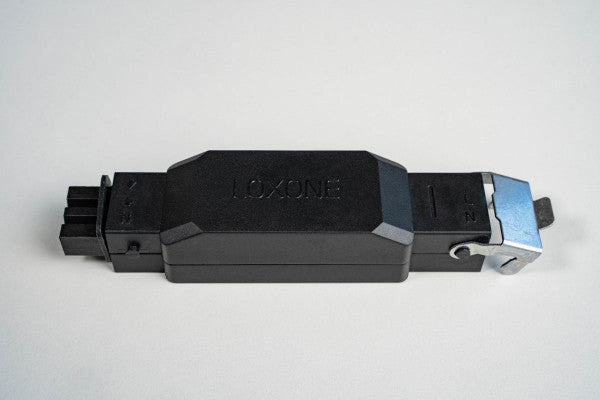

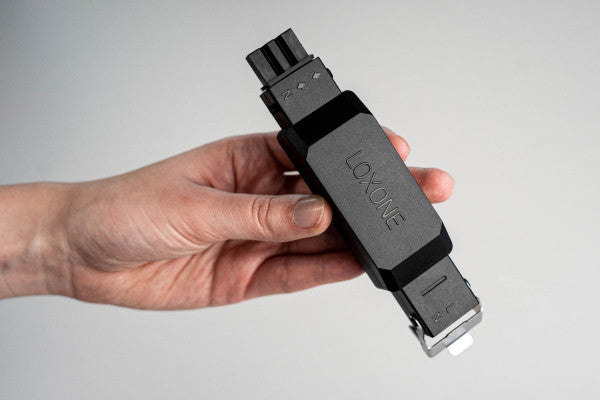

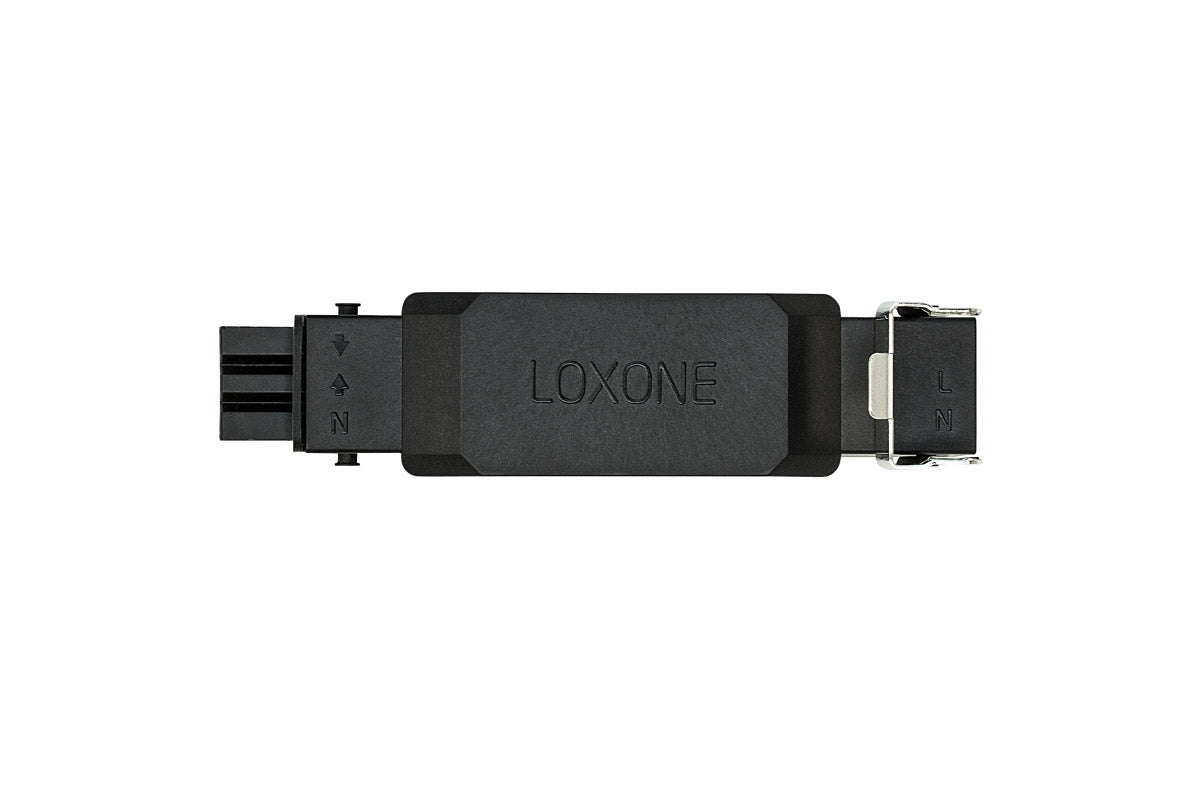

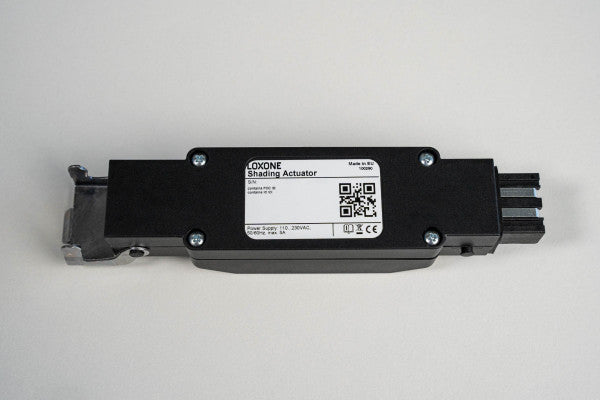

Shading Actuator Air

The Loxone Shading Actuator Air is a wireless actuator for mains voltage. Both shading devices and other loads, such as lighting circuits, drives, fans or pumps can be connected to the two relay outputs.

Features:

• Fully automatic end position detection

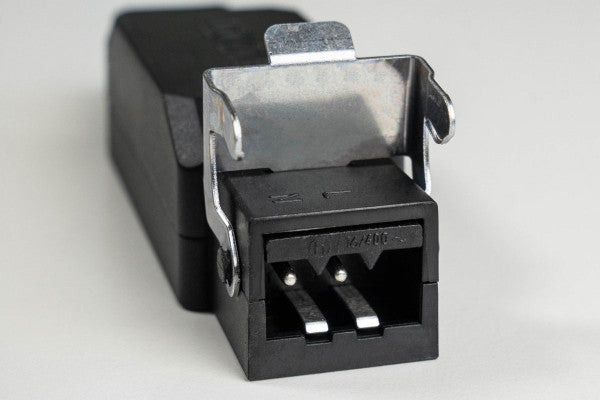

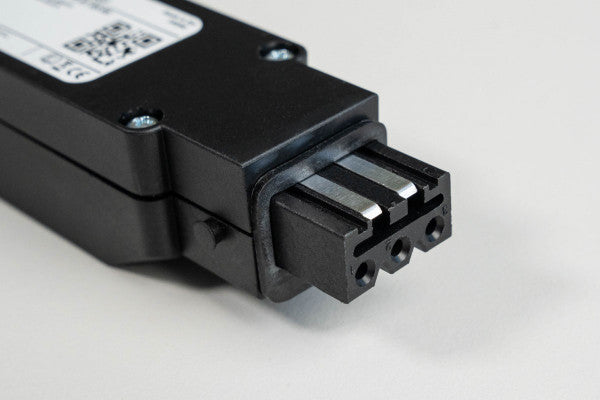

• Standardized Hirschmann connector
• Reliable wireless coverage thanks to Loxone Air technology
• Flexibility: The 5A relays can be used freely to control lighting circuits, drives, fans or pumps, for example. Thanks to its IP54 certification, the Shading Actuator Air is the universal solution for outdoor use

Technical details:

Power Supply:
110 ... 230VAC, 50/60Hz

Outputs:
2 relays 5A each @cos φ = 1 (total load max. 5A)

Plug-in connectors:
Hirschmann STAK 3, STAS 3

Product dimensions:
129.1x32.5x26.8mm / 5.08x1.28x1.06” (LxWxH)
