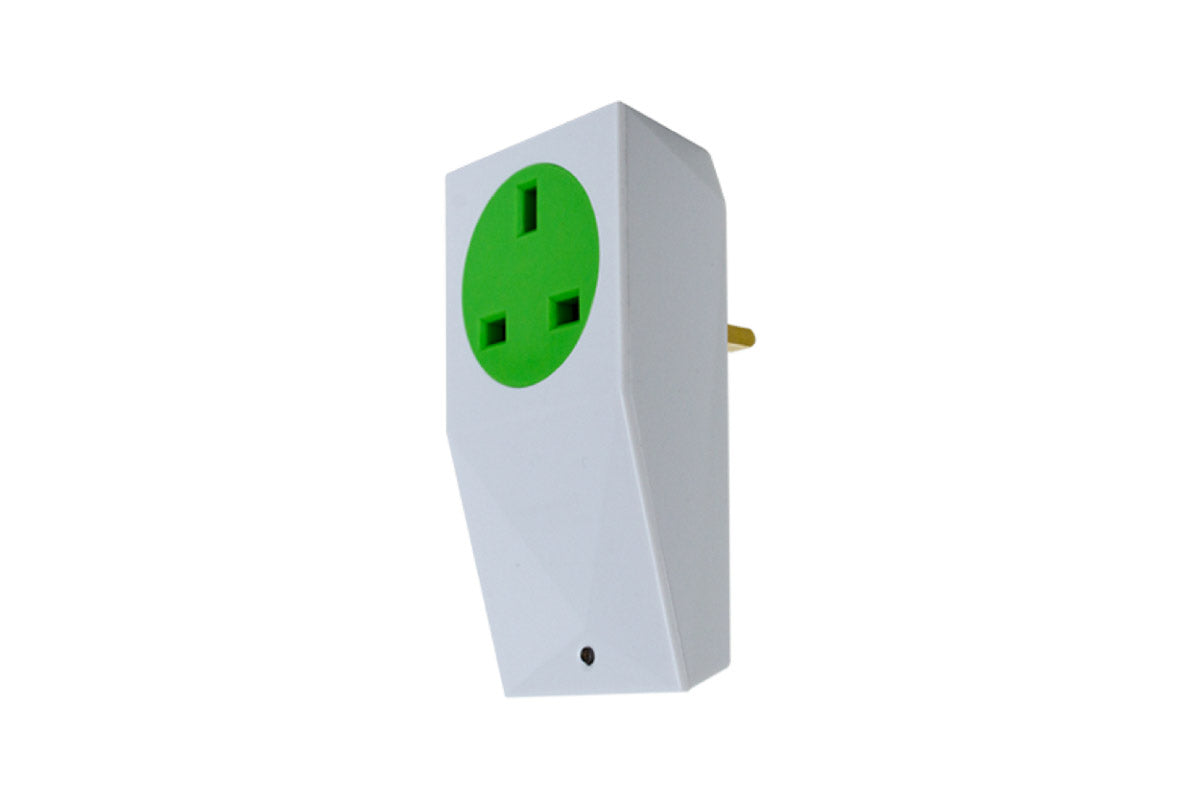

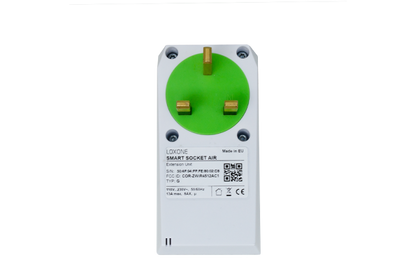

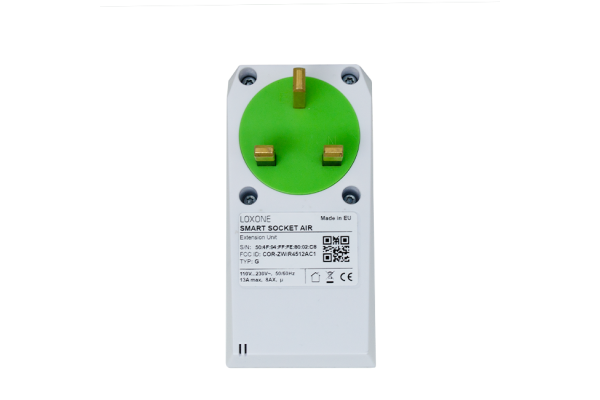

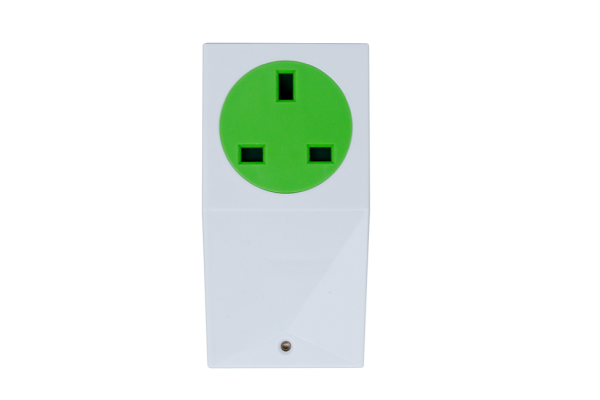

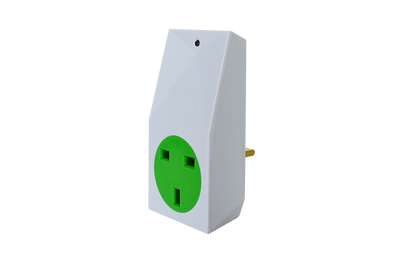

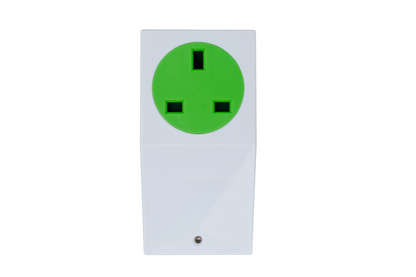

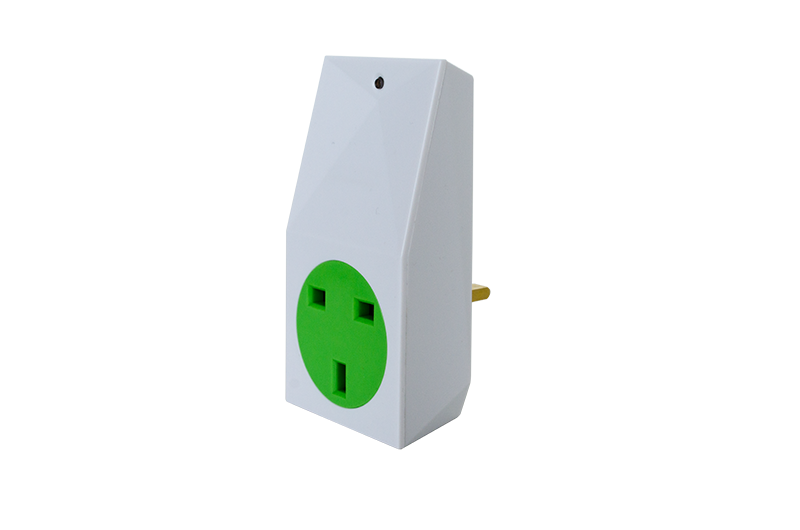

Smart Socket Air - Type G

The Loxone Smart Socket Air is a switchable radio socket with measurement of temperature, power and energy.

Features:

• Typical areas of application: Energy recording and measurement of consumers
• Automated switching on and off of consumers based on presence, time, load monitoring
• Remote control of consumers
• Integrated temperature sensor
• Integrated button for individual use
• 3-colored LEDs for individual control
• Easy integration thanks to Loxone Air

Technical details:

Power Supply:
110 ... 230VAC, 50/60Hz
Outputs:protective contact socket outlet (single-pole switched with internal relay, bistable) total load max. 10A (Plug Type J) total load max. 13A (Plug Types E, F, G)

Temperature detection range:
-40 … 125°C / -40 … 257°F; +/- 0.5°C / 0.9°FPower

detection range:
0 ... 4kW

Product dimensions:
106x53.8x29.5mm / 4.17x2.12x1.16” (LxWxH) (without plug)
