Loxone

Tree Extension

Tree Extension

MYR 955.00
MYR 955.00
Sale Sold out

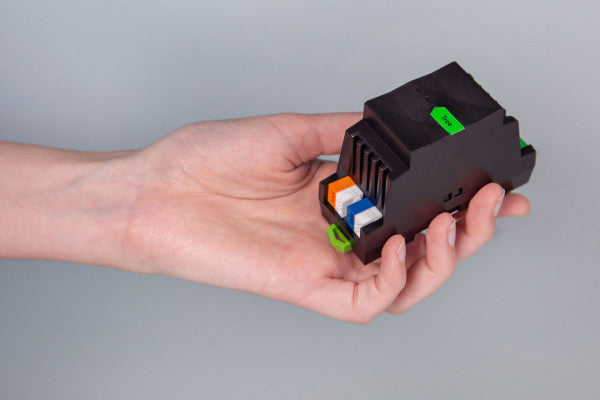

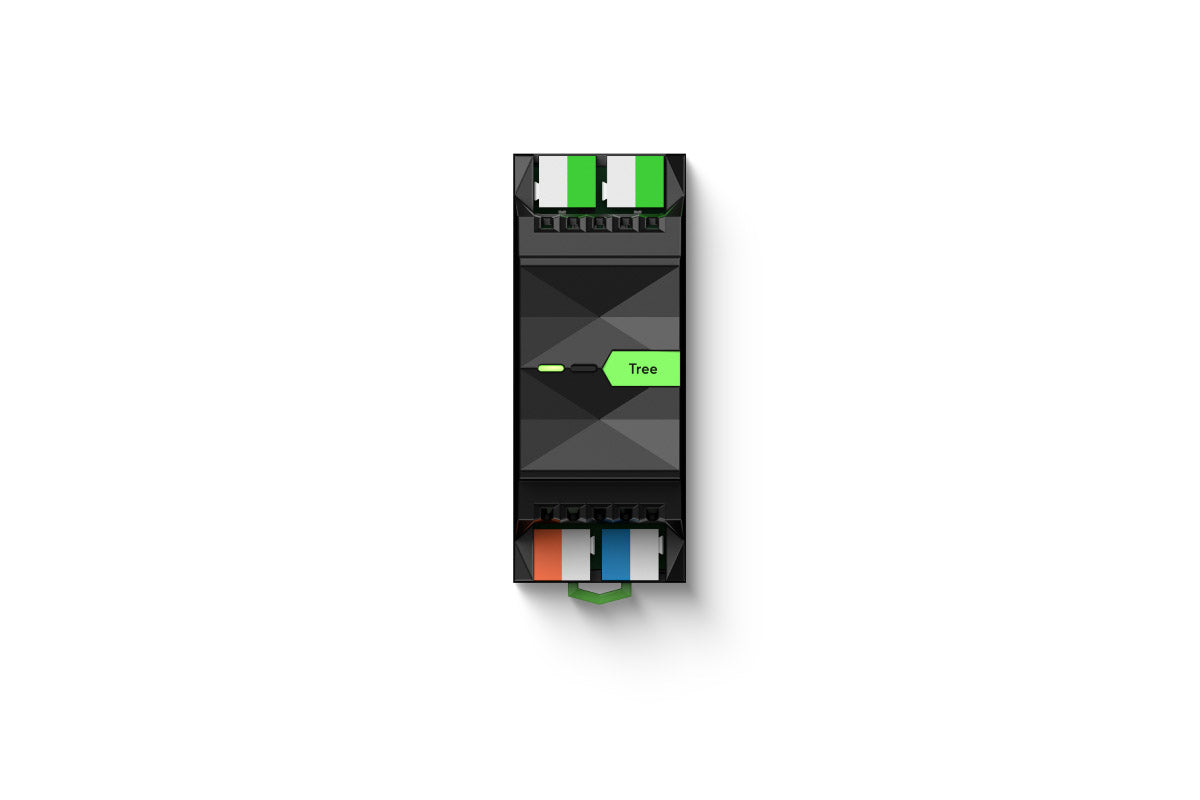

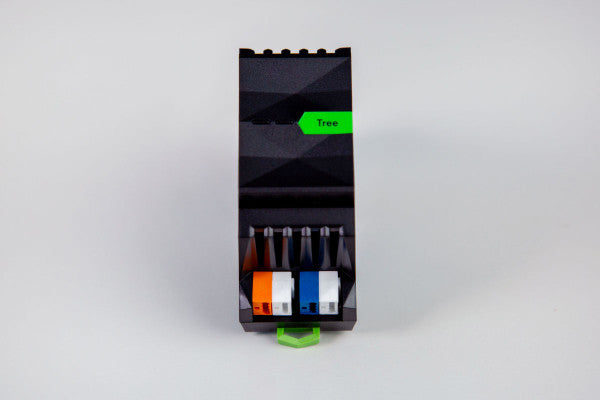

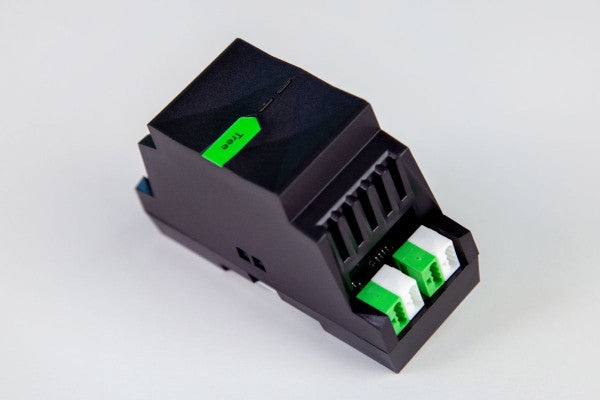

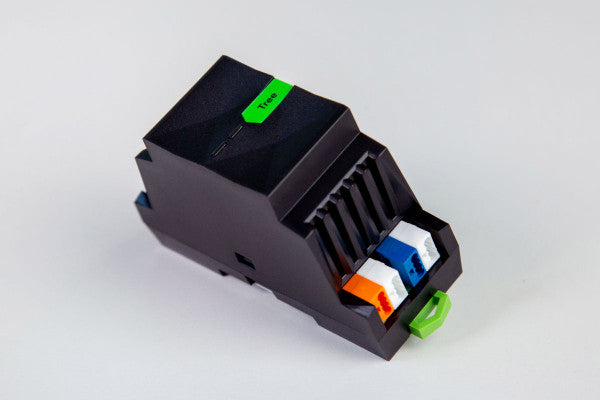

The Loxone Tree Extension is used to extend the Miniserver and enables the integration of numerous devices that are equipped with the Loxone Tree technology.

Features:

  • Two Tree connections for up to 50 devices per branch
  • Up to 80% less cabling effort
  • Line, star and tree wiring topology
  • High delay-free transmission speed
  • Update capability
  • Integrated diagnostic function
  • Encrypted communication

Communication between security-relevant Tree products is encrypted.

Technical details:

Supply voltage:
9 … 28 VDC

Product dimensions:
88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units
View full details


Simply wired. Fully scalable.

With the development of Loxone Tree, we pursued a clear goal: to reduce the wiring and installation effort of buttons, sensors & lighting fixtures in residential and commercial buildings to a minimum.

Up to 50 Tree peripheral devices can be connected to per branch at the two connections of the Tree Extension. The maximum cable length per branch is up to 500m.



Connection Diagram

Certificates and Compatibilities

Datasheet
