Loxone

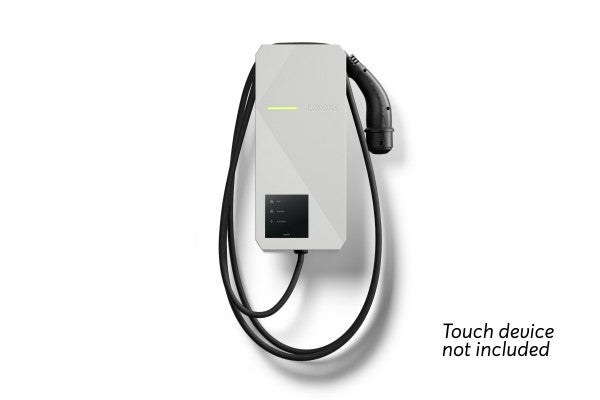

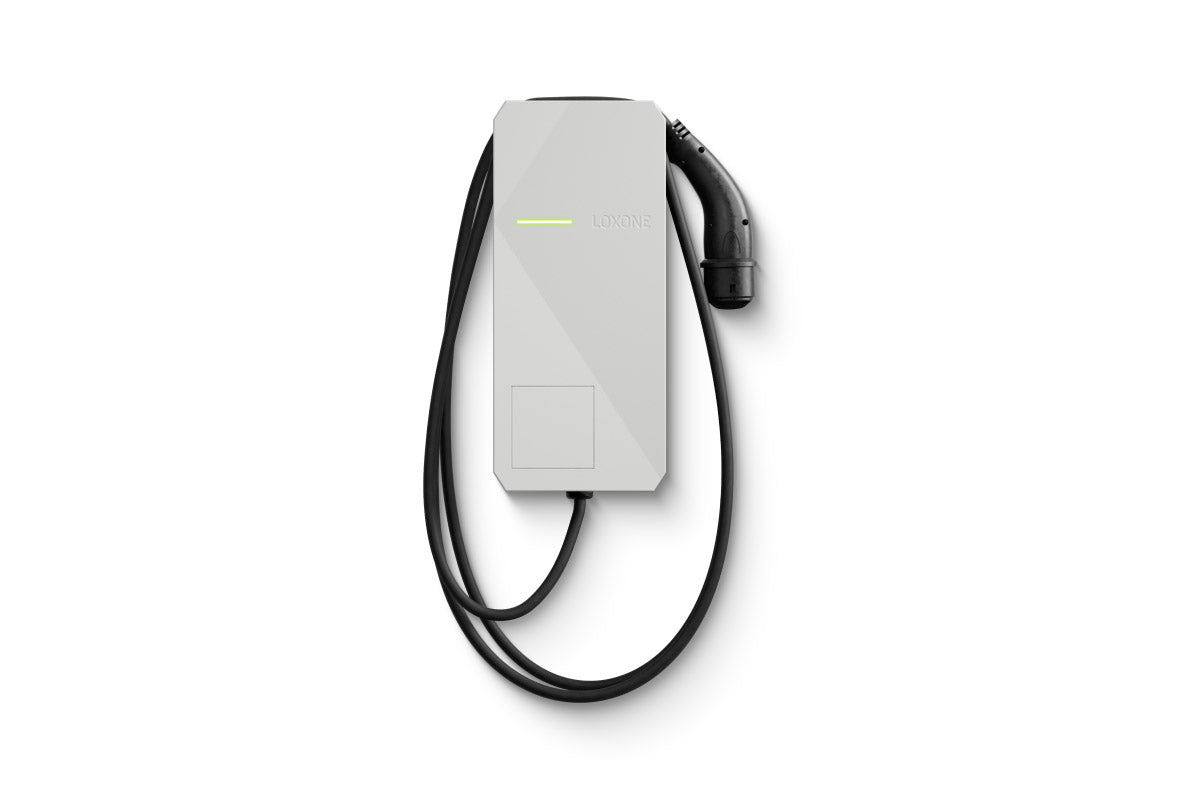

Wallbox 11kW 16A Tree

Wallbox 11kW 16A Tree

MYR 5,700.00
MYR 5,700.00
Sale Sold out

The Loxone Wallbox enables dynamic charging from 1.38kW to 11kW for electric vehicles. The Tree interface allows all the freedom for efficient energy management.

Features:

  • Charge for free: use PV surplus efficiently
  • Electricity exchange included: charge cheaply, even without a PV system. Ideal for variable electricity tariffs
  • Easy operation with the Touch Pure Flex or the Loxone app
  • Fleet-compatible: Protection of the line and the building thanks to optimal power distribution
  • User identification and billing via NFC
  • Optional expansion with touch devices, meters
  • Up to 5 customizable charging modes
  • Easy integration via Tree
  • OCPP capable

Technical details:

Max. charging power:
11kW (3 phase 16A)
3.7kW (1 phase 16A)
configurable from 1.38kW to 3.7/11kW

Charging cable with plug:
Type 2 plug (IEC 62196)
5 meter cable, 5 x 4 mm² + 1 x 0.5 mm²

Modbus RTU:
max. 1 device
max. 3 m wire length
adjustable baud rate & parity
data types: 16 & 32 bit
min. polling cycle: 0.1 s / 1 s

Ingress protection:
IP44 (IEC 60529)
IK08 (IEC 62262)

Product dimensions:
430x190x130mm / 16.93x7.48x5.12" (HxWxD)
View full details

Your charging solution for all requirements.

Shop when it's cheap

Variable electricity tariffs are becoming more and more common, and the Miniserver ensures that your car is only charged at the cheapest times.

Example:

You charge for 4 hours (44 kWh). From 5 p.m. to 9 p.m. you pay €16.71, from 1 a.m. to 5 a.m. only €8.50.

Charging for free

Thanks to the automatic switching from 1-phase to 3-phase, the Wallbox can be activated from 1.38 kW and make optimal use of the PV surplus. Regardless of whether there is one or more charging stations, the surplus is used optimally.

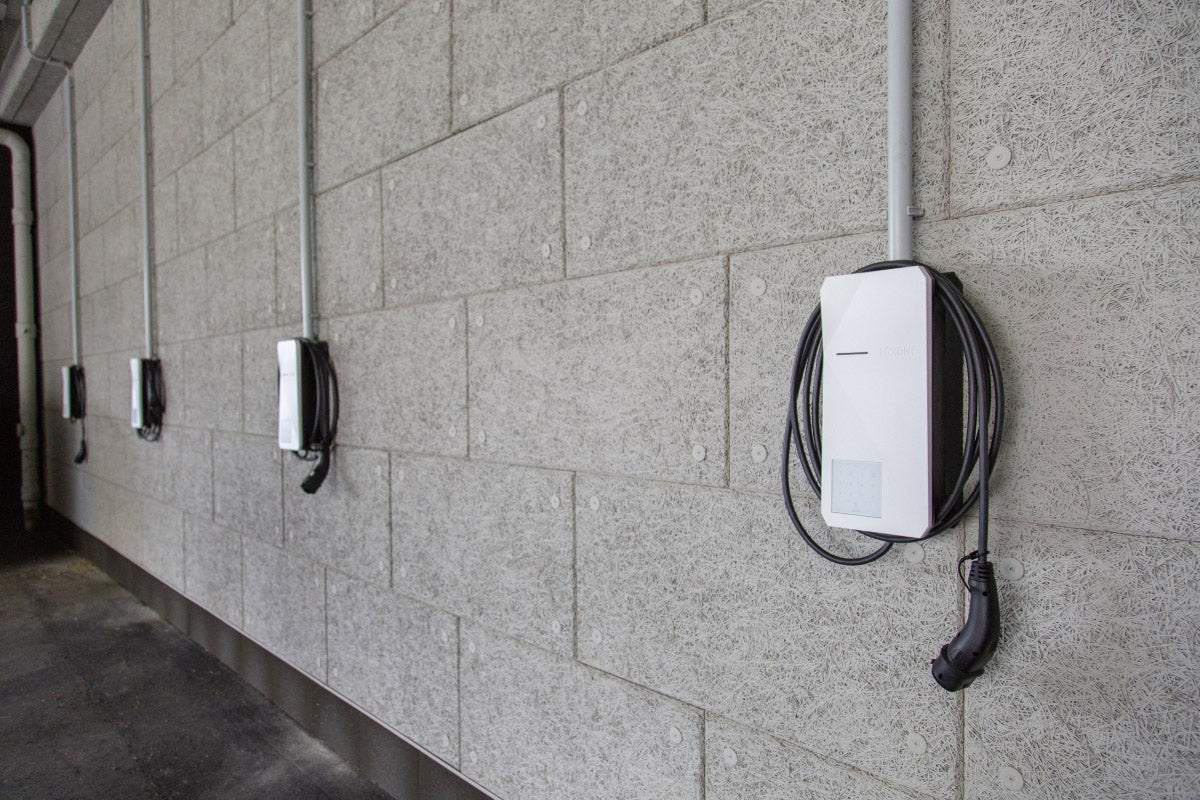

Flotten Support

  • Wallbox Manager module distributes the power to several wallboxes so that the fuses are protected
  • Priority - charge as quickly as possible while your building remains safe
  • Eco - Distributes cheap energy fairly to several wallboxes

Billing

  • Billing possible thanks to the built-in meter in combination with the NFC Code Touch
  • Charging processes are automatically logged and can be forwarded for billing
  • Thanks to Exosphere integration, this is also possible across locations

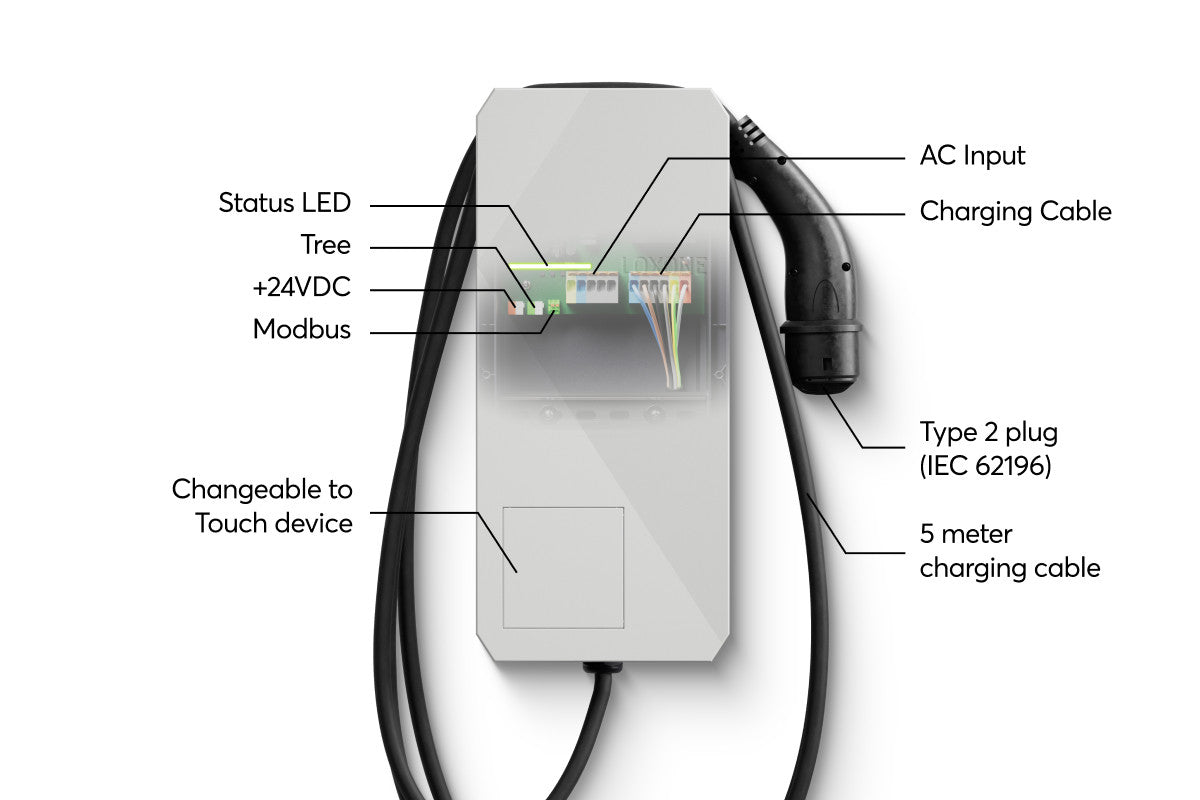

Individual and expandable

Thanks to the integrated top hat rail and Modbus or Tree interface, additional components can be integrated for further functions.

  • 3-phase meter: For billing and statistics recording
  • NFC Code Touch: For activation via NFC tag or code
  • Touch Pure Flex: For individual operation or for selecting the charging modes
  • Touch Pure: For controlling the garage door, lighting, music, ...

Public Charging

  • Can be connected to public charging network via OCPP
  • Automatic processing of charging processes for external charging guests
  • Ad hoc charging: Easy to use with QR codes, no prior registration or contract required

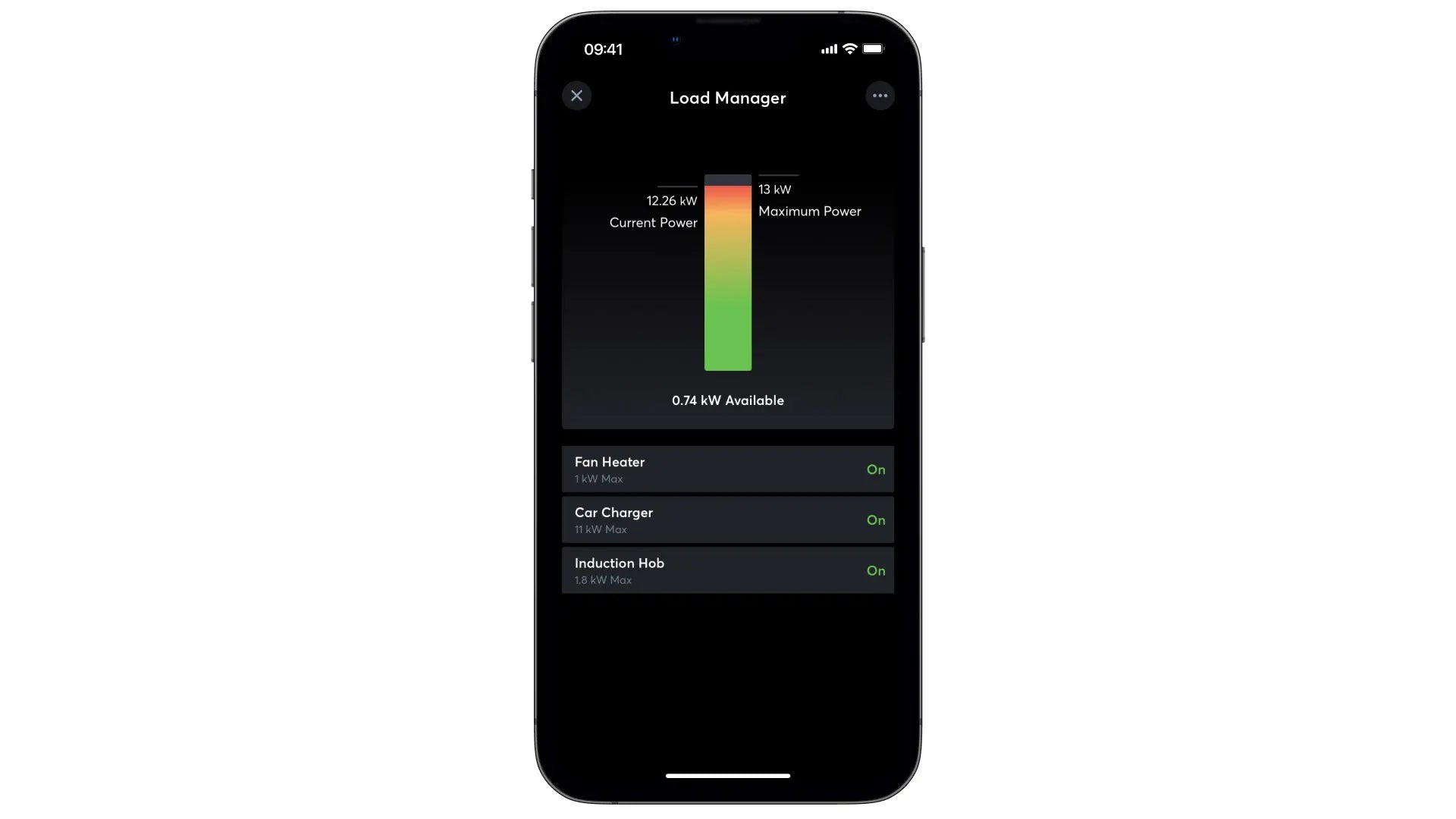

Load management included

Whether private or commercial, your building connection is secured thanks to Load Manager.

  • Since 2024, §14a EnWG has been in force in Germany. With Loxone's energy management (EMS), you are well prepared.
  • Before an overload occurs, the output of consumers such as the Wallbox is automatically reduced or switched off completely.

Always under control, always in view.

  • Easy operation in the Loxone app or through the Touch Pure Flex
  • Up to 5 individual charging modes
  • Record energy flows using the energy flow monitor
  • Statistics and recording included
